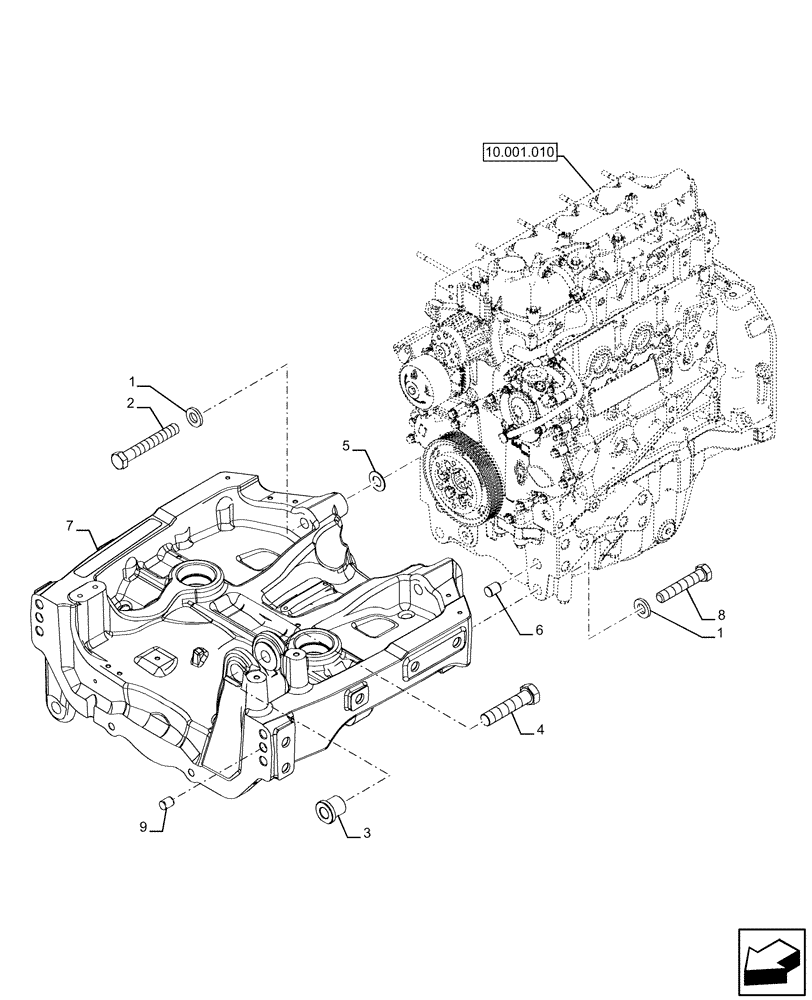

Запчасти Case IH FARMALL 120U (25.100.140) - VAR - 744942, 744943, 754558, 758288, 758336, 758385, 758578 - SUSPENDED FRONT AXLE, SUPPORT (25) - FRONT AXLE SYSTEM

1

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

4шт.

2

15989931

BOLT,Hex, M20 x 1.5 x 140mm, Cl 10.9

2шт.

3

47672232

NUT

1шт.

4

15997731

BOLT,Hex, M24 x 2 x 110mm, Cl 10.9

1шт.

5

47961708

SHIM,21mm ID x 40mm OD x 1.2mm Thk, White

1.2mm Thk

1шт.

5

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

1шт.

5

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

2шт.

5

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

1шт.

5

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

1шт.

5

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

1шт.

6

84398609

PIN,20mm OD x 25mm L

2шт.

7

47642596

SUPPORT

1шт.

8

15242434

BOLT,Hex, M20 x 1.5 x 110mm, Cl 10.9, Full Thd

2шт.

9

4668595

DOWEL,18mm OD x 22mm L

2шт.
