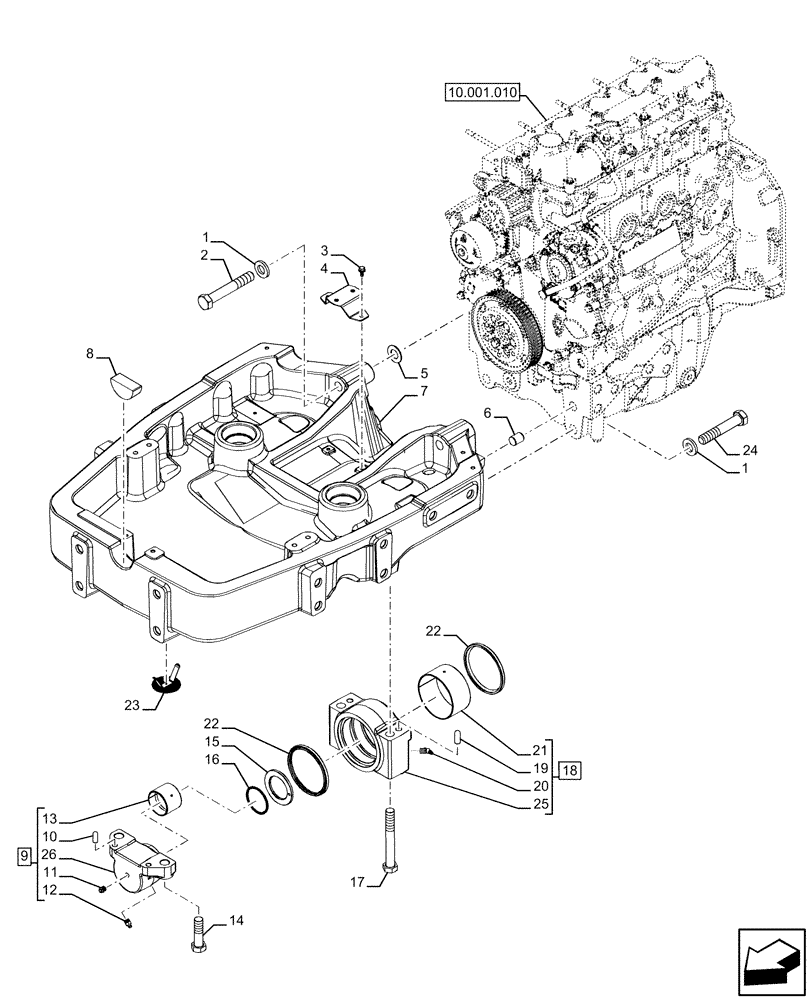

Запчасти Case IH FARMALL 120U (25.100.100) - VAR - 335156, 390789 - FRONT AXLE SUPPORT (25) - FRONT AXLE SYSTEM

1

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

4шт.

2

15989734

BOLT,Hex, M20 x 1.5 x 130mm, Cl 10.9

2шт.

3

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

2шт.

4

47368789

BRACKET

1шт.

5

47961708

SHIM,21mm ID x 40mm OD x 1.2mm Thk, White

1.2mm Thk

1шт.

5

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

1шт.

5

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

2шт.

5

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

1шт.

5

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

1шт.

5

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

1шт.

6

84398609

PIN,20mm OD x 25mm L

2шт.

7

47767001

SUPPORT

1шт.

8

84408278

PLUG,Closing cavity

1шт.

9

5140452

SUPPORT

ASSY, Incl 10 - 13, 26

1шт.

10

10837710

DOWEL,M10 x 25

2шт.

11

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

1шт.

13

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

14

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

15

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

16

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

17

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

18

47131328

SUPPORT

ASSY, Incl 19 - 21, 25

1шт.

19

10837810

DOWEL,M12 x 30.00mm

2шт.

20

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

21

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

22

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

2шт.

23

5120218

GRILLE

1шт.

24

15242434

BOLT,Hex, M20 x 1.5 x 110mm, Cl 10.9, Full Thd

2шт.

25

NSS

NOT SOLD SEPARAT

Support, Incl in 18

1шт.

26

NSS

NOT SOLD SEPARAT

Support, Incl in 9

1шт.
