(25.100.080) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HOUSING

Запчасти Case IH FARMALL 120U (25.100.080) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HOUSING (25) - FRONT AXLE SYSTEM

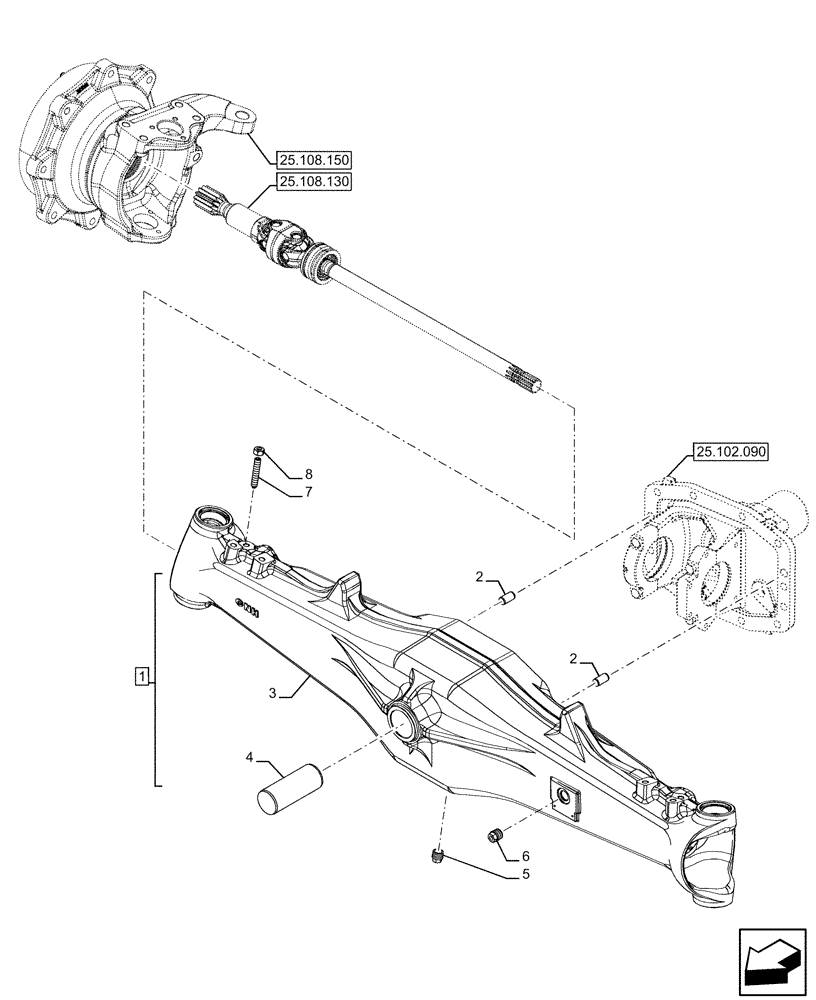

Схема запчастей Case IH FARMALL 120U - (25.100.080) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HOUSING (25) - FRONT AXLE SYSTEM
25.102.090
3
2
5
7
8
6
4
2
1
25.108.150
25.108.130
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47657849

HOUSING

ASSY, Incl 2 - 4

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

4

47657845

PIVOT

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

3шт.

7

87309002

SET SCREW

2шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

Выбрано товаров: 8
