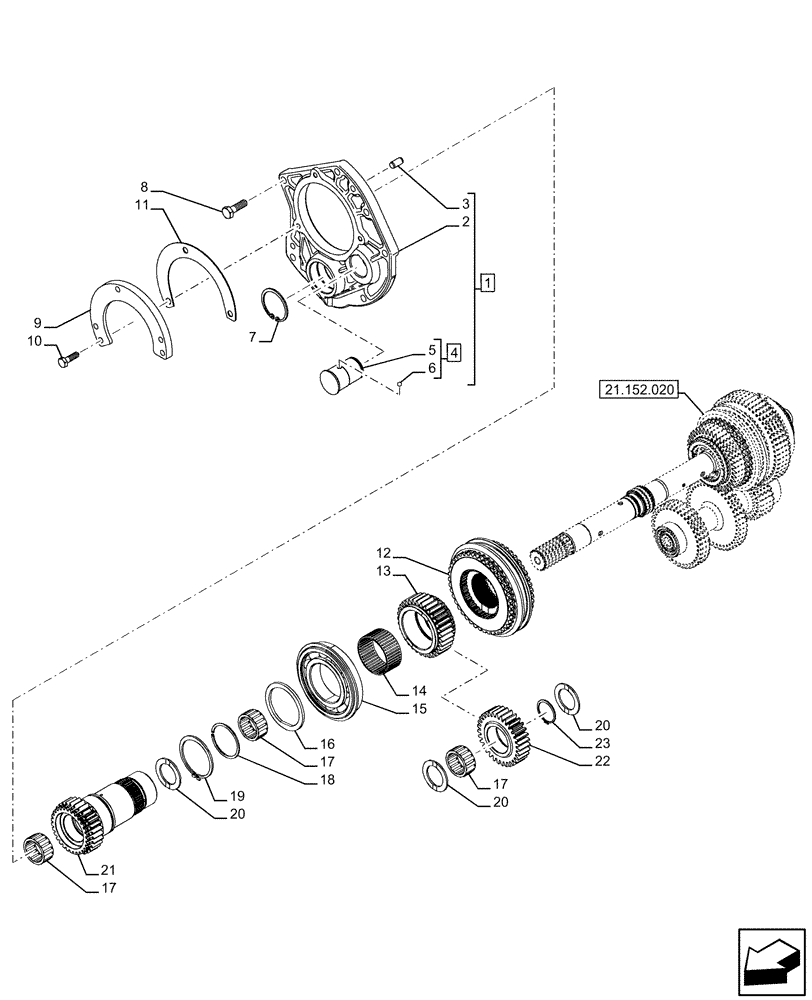

Запчасти Case IH FARMALL 120U (21.152.070) - VAR - 334114, 334117, 334775, 334779, 334780, 390430 - TRANSMISSION, SEMI-POWERSHIFT, INTERNAL, COMPONENTS, REVERSER (21) - TRANSMISSION

1

84531309

COVER ASSY

ASSY, Incl 2, 6

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

4988170

PIN,10mm OD x 20mm L

2шт.

4

82013692

SHAFT

ASSY, Incl in 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Incl in 4

1шт.

6

83416928

BALL,1/4 OD

1шт.

7

11060576

SNAP RING,M52, Int

1шт.

8

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

6шт.

9

47126699

COVER

1шт.

10

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.

11

87307436

SHIM,0.50mm Thk

1шт.

11

87307437

SHIM,0.60mm Thk

1шт.

11

87307438

SHIM,0.70mm Thk

1шт.

11

87307439

SHIM,0.80mm Thk

1шт.

11

87307441

SHIM,1mm Thk

1шт.

11

87307442

SHIM,1.10mm Thk

1шт.

11

87307443

SHIM,1.20mm Thk

1шт.

11

87307444

SHIM,1.30mm Thk

1шт.

11

87307445

SHIM,1.40mm Thk

1шт.

11

87307446

SHIM,1.50mm Thk

1шт.

11

87307447

SHIM,1.60mm Thk

1шт.

11

87307448

SHIM,1.70mm Thk

1шт.

11

87307449

SHIM,1.80mm Thk

1шт.

11

87307450

SHIM,1.90mm Thk

1шт.

11

87307451

SHIM,2mm Thk

1шт.

11

87307452

SHIM,2.10mm Thk

1шт.

11

87307453

SHIM,2.20mm Thk

1шт.

11

87307454

SHIM,2.30mm Thk

1шт.

12

47124378

SYNCHRONIZER

Reverse, D 114

1шт.

13

47126624

DRIVEN GEAR

Transmission Reverse, Z 33

1шт.

14

81863566

BEARING ASSY,59.99mm ID x 65mm OD x 29.8mm W

1шт.

15

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

16

47126730

WASHER

1шт.

17

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

3шт.

18

47126700

SNAP RING

1шт.

19

11070076

SNAP RING,M65, Ext

1шт.

20

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

3шт.

21

47586758

SHAFT,161.7mm L

Syncro, FWD-REV 161.7mm

1шт.

22

81863092

GEAR

Reverse, Z 31

1шт.

23

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.
