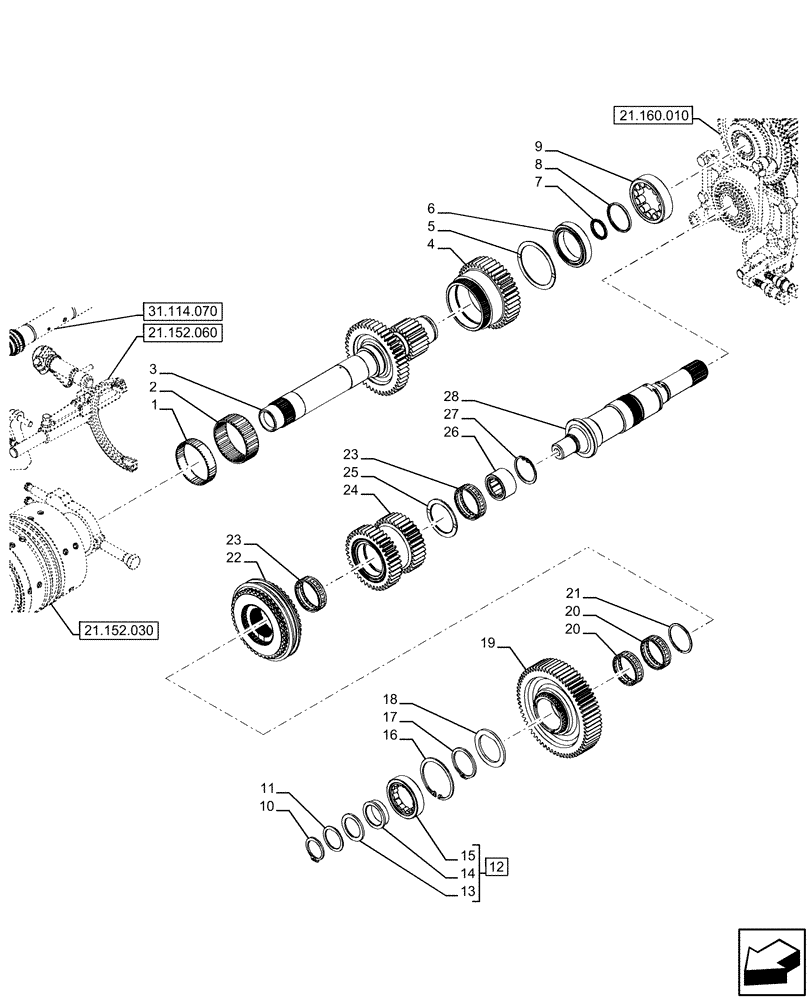

Запчасти Case IH FARMALL 120U (21.152.040) - VAR - 334114, 334775, 334779, 390430 - TRANSMISSION, SEMI-POWERSHIFT, INTERNAL, COMPONENTS, GEAR REDUCTION UNIT (21) - TRANSMISSION

1

81863561

BEARING ASSY,80mm ID x 86mm OD x 19.8mm W

1шт.

2

81863562

BEARING ASSY,80mm ID x 88mm OD x 29.8mm W

1шт.

3

87396959

DRIVE SHAFT,415mm L

1шт.

4

87396958

GEAR

1шт.

5

81863743

THRUST WASHER,Grooved, 80.2mm ID x 96.2mm OD x 2.1mm Thk

1шт.

6

82857005

BEARING ASSY,59.98mm ID x 84.98mm OD x 15.95mm W

1шт.

7

47137455

OIL SEAL,32mm ID x 40mm OD x 4mm Thk

1шт.

8

81863725

SPACER

1шт.

9

81863141

BEARING ASSY,52mm ID x 89.98mm OD x 22.88mm W

1шт.

10

81863365

RING

1шт.

11

81869768

WASHER

1шт.

12

81863568

BEARING ASSY

ASSY, Incl 13 - 15

1шт.

13

82858956

WASHER

1шт.

14

NSS

NOT SOLD SEPARAT

Bushing, Incl in 12

1шт.

15

82858958

BEARING ASSY

1шт.

16

11061976

SNAP RING,M80, Int

1шт.

17

5134792

SNAP RING,50.80mm ID, 3mm Thk

1шт.

18

5199957

SPACER

1шт.

19

47127127

DRIVEN GEAR

1шт.

20

81863673

BEARING ASSY,Needle, 55mm ID x 61.99mm OD x 17.8mm W

2шт.

21

47126700

SNAP RING

1шт.

22

5196249

SYNCHRONIZER

1шт.

23

81863574

BEARING ASSY,58mm ID x 65mm OD x 17.8mm W

2шт.

24

87396960

GEAR

1шт.

25

81866547

THRUST WASHER,58.4mm ID x 76mm OD x 2.45mm Thk

1шт.

26

81863940

BEARING ASSY,Needle, 31mm ID x 52mm OD x 29mm W

1шт.

27

11060576

SNAP RING,M52, Int

1шт.

28

47127095

SHAFT,371.5mm L

1шт.
