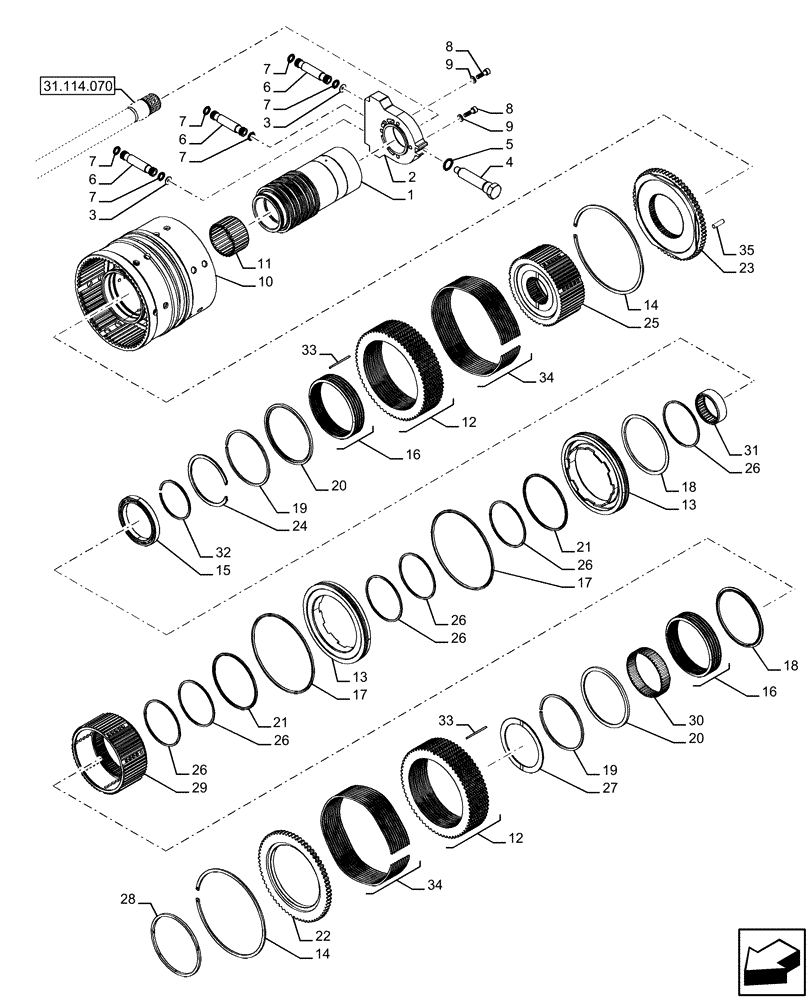

Запчасти Case IH FARMALL 120U (21.152.030) - VAR - 334114, 334117, 334775, 334779, 334780, 390430 - TRANSMISSION, SEMI-POWERSHIFT, INTERNAL, COMPONENTS, CLUTCH MECHANISM (21) - TRANSMISSION

1

47136723

SUPPORT

1шт.

2

47136803

MANIFOLD

1шт.

3

47128758

FRICTION WASHER

2шт.

4

81869155

PIN,16.74mm OD x 96mm L

1шт.

5

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

82850838

TUBE,14.3 mm OD, 76 mm Length

3шт.

7

83925620

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

6шт.

8

14305387

HEX SOC SCREW,M6 x 20mm, Full Thd

4шт.

9

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

4шт.

10

47438659

CLUTCH HOUSING

1шт.

11

81864006

BEARING ASSY,50mm ID x 58mm OD x 34.8mm W

1шт.

12

47136624

CLUTCH PACK

2шт.

13

84589873

PISTON

2шт.

14

47449894

SNAP RING

2шт.

15

81864036

BEARING ASSY,69.98mm ID x 89.98mm OD x 9.85mm W

1шт.

16

81864187

SPRING

20шт.

17

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

2шт.

18

47136691

SPACER

2шт.

19

47136619

SNAP RING

2шт.

20

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

2шт.

21

5199232

SEALING RING

2шт.

22

47136623

THRUST PLATE

1шт.

23

47456510

THRUST PLATE

1шт.

24

82935813

SNAP RING

1шт.

25

47136629

HUB

1шт.

26

5197519

SEAL,Split, 80.61mm ID x 86.01mm OD x 1.93mm Thk

6шт.

27

84345893

THRUST WASHER

1шт.

28

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

29

47136630

HUB

1шт.

30

81863561

BEARING ASSY,80mm ID x 86mm OD x 19.8mm W

1шт.

31

81863573

BEARING ASSY,Needle, 50mm ID x 58mm OD x 19.7mm W

1шт.

32

81863364

CIRCLIP

1шт.

33

84335461

PIN

2шт.

34

81878948

SPRING,162.58mm ID

20шт.

35

13897270

ROLL PIN,M2.5 x 10, Coiled

1шт.
