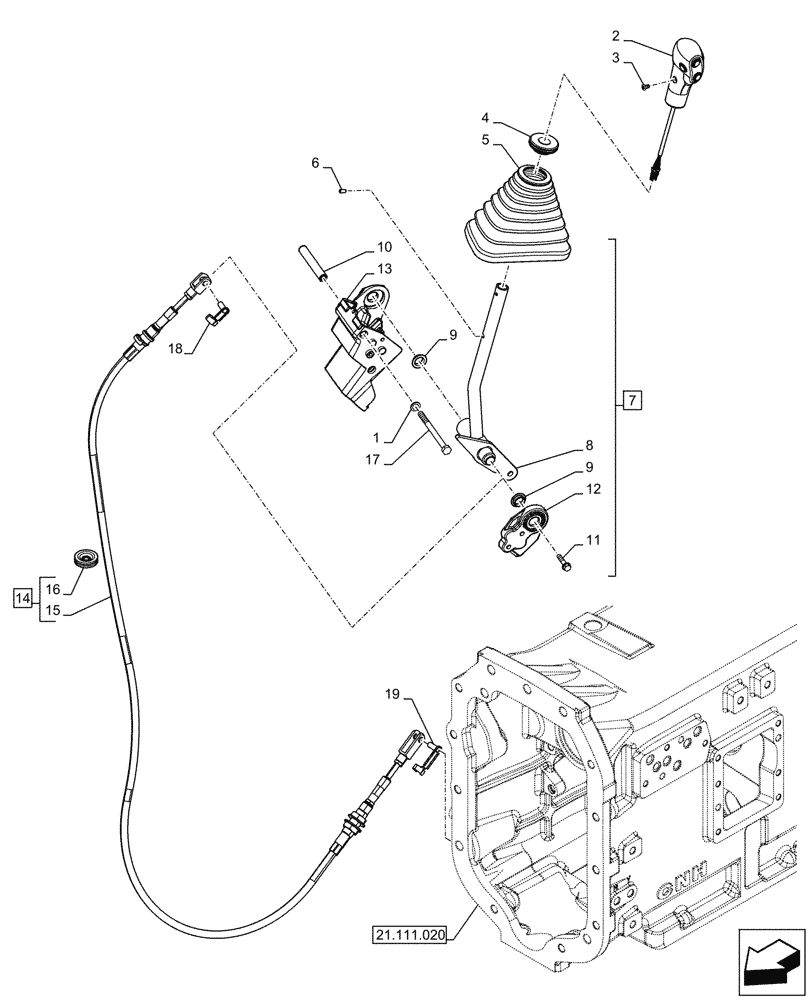

Запчасти Case IH FARMALL 120U (21.133.050) - VAR - 393286 - TRANSMISSION, SEMI-POWERSHIFT, CONTROL LEVER, GEARSHIFT (21) - TRANSMISSION

1

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

2

47751423

KNOB

1шт.

3

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

4

84585146

BUSHING,19.2mm ID x 46mm OD x 16mm L

1шт.

5

47463998

BOOT

1шт.

6

84139323

SET SCREW,M5 x 0.8 x 10mm

1шт.

7

47423414

SELECTOR

ASSY, Incl 8 - 13

1шт.

8

47423413

LEVER

1шт.

9

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

10

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

11

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

12

84478538

SUPPORT

1шт.

13

84338365

SUPPORT

1шт.

14

84582434

CABLE

ASSY, Incl 15, 16, 18, 19

1шт.

15

NSS

NOT SOLD SEPARAT

Incl in 14

1шт.

16

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

17

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

18

85819469

CLIP

1шт.

19

47531067

SPRING CLIP

1шт.
