Запчасти Case IH FARMALL 120U (21.109.040) - VAR - 334119, 390434 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

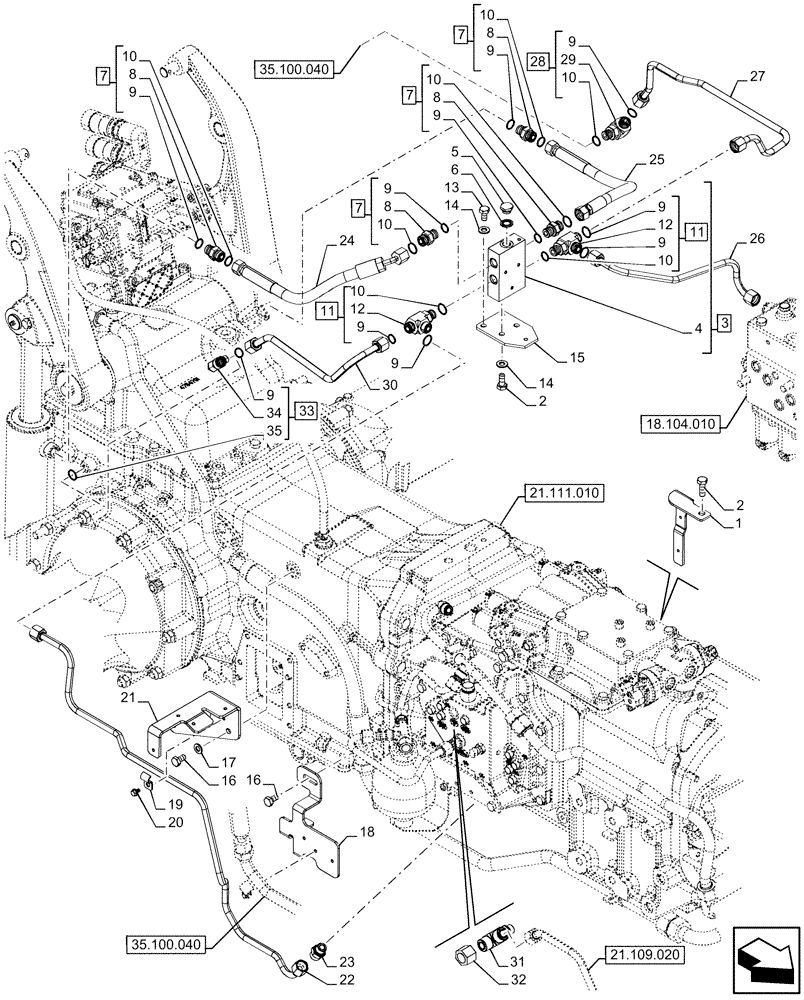

Схема запчастей Case IH FARMALL 120U - (21.109.040) - VAR - 334119, 390434 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION
21.111.010
11
10
16
12
10
21
10
12
13
8
10
24
26
1
10
9
7
18
8
9
35
27
9
10
5
7
8
23
22
4
33
20
7
17
2
9
9
29
9
8
7
9
28
16
34
31
9
9
32
25
3
14
2
10
11
9
14
30
15
6
19
18.104.010
35.100.040
35.100.040
21.109.020

Артикул

Название

Примечание

Количество

1

47596440

BRACKET

1шт.

2

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

3

47636627

BLOCK

ASSY, Incl 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

Block, Incl in 3

1шт.

5

10300711

PLUG,M16 x 1.5 x 14, Cl5.8

1шт.

6

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

1шт.

7

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 8 - 10

4шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

11

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 12

2шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.

13

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

15

47549750

BRACKET

1шт.

16

18700721

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

18

47864308

BRACKET

1шт.

19

84168456

CLAMP BRACKET

1шт.

20

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

1шт.

21

47756057

BRACKET

1шт.

22

47746865

PIPE

1шт.

23

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

24

47543603

HOSE

RH, Lift Cylinder

1шт.

25

47543608

HOSE

LH, Lift Cylinder

1шт.

26

47542702

PIPE

For PTO

1шт.

27

47543271

PIPE

Rear PTO

1шт.

28

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, incl 9 (Qty 1), 10 (Qty 1), 28

1шт.

29

NSS

NOT SOLD SEPARAT

Elbow, Incl in 29

1шт.

30

47735712

PIPE

For Differenzial

1шт.

31

84205612

RUN TEE

1шт.

32

9840576

CAP,1" - 14 ORFS

1шт.

33

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 9 (Qty 1), 34, 35

1шт.

34

NSS

NOT SOLD SEPARAT

Elbow, Incl in 33

1шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 35
