Запчасти Case IH FARMALL 120U (21.109.030) - VAR - 337707, 758604 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

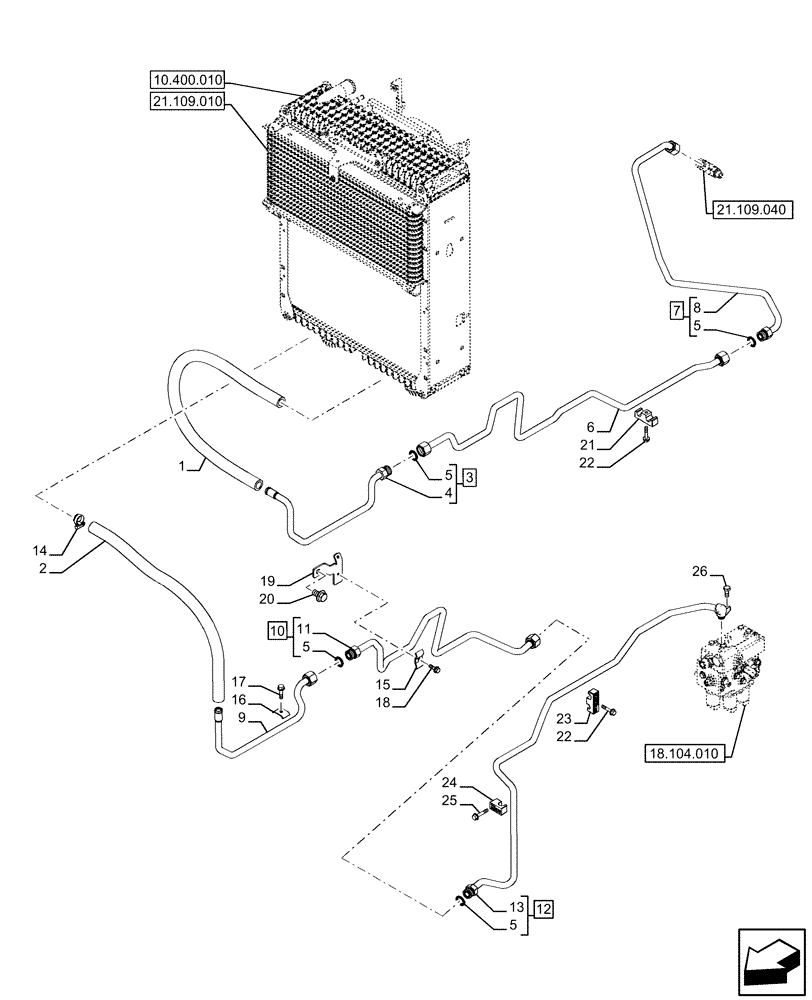

Схема запчастей Case IH FARMALL 120U - (21.109.030) - VAR - 337707, 758604 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION
21.109.010
17
19
4
22
9
14
13
5
6
3
23
26
7
5
18
12
16
22
10
21
20
2
5
8
11
5
15
24
1
21.109.040
25
18.104.010
10.400.010

Артикул

Название

Примечание

Количество

1

47864603

HOSE

from Cooler to Radiator

1шт.

2

47869489

PIPE

from Radiator to Cooler

1шт.

3

47866769

PIPE

ASSY, Return from Cooler, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

6

47807198

PIPE

Return from Cooler

1шт.

7

47607395

PIPE

ASSY, Return Oil Cooler, Incl 8, 5 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 7

1шт.

9

47866767

PIPE

Supply Cooler

1шт.

10

47807204

PIPE

ASSY, Supply Cooler, Incl 11, 5 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Pipe, Incl in 10

1шт.

12

47807207

PIPE

ASSY, From Control Valve to Radiator, Incl 13, 5 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

Pipe, Incl in 12

1шт.

14

47471898

HOSE CLAMP,20mm - 32mm

4шт.

15

84475431

BRACKET

1шт.

16

47057074

CLAMP,48.6mm x 30mm

1шт.

17

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

18

16286124

BOLT,M6 x 20mm, 8.8 DAC

1шт.

19

47668503

BRACKET

1шт.

20

844-12020

BOLT,Hvy Hex, M12 x 20mm, Cl 8.8

1шт.

21

87571442

BRACKET

1шт.

22

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

23

87694267

BLOCK

1шт.

24

87326640

CLAMP,16mm ID

1шт.

25

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

26

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 26
