Запчасти Case IH FARMALL 120U (21.109.020) - VAR - 330308, 390399, 758331 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

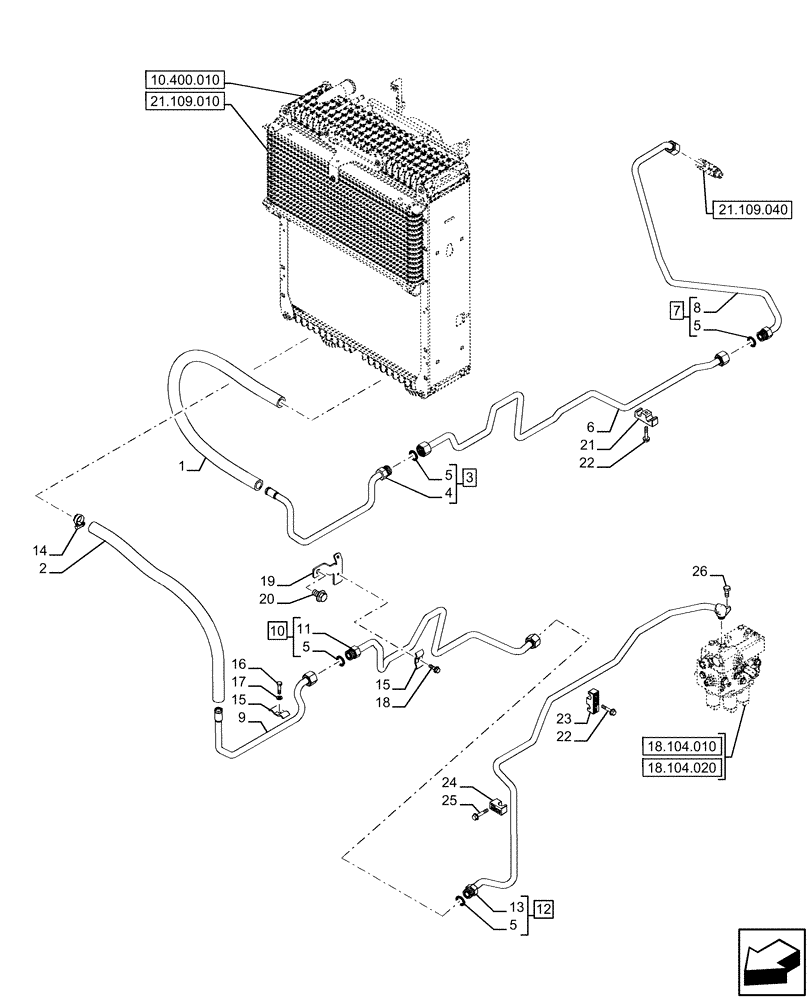

Схема запчастей Case IH FARMALL 120U - (21.109.020) - VAR - 330308, 390399, 758331 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION
18.104.020
10
25
15
8
22
16
11
5
2
22
19
1
18
6
15
5
21
14
4
7
24
5
12
26
20
9
23
5
3
13
21.109.040
17
18.104.010
10.400.010
21.109.010

Артикул

Название

Примечание

Количество

1

47864603

HOSE

from Cooler to Radiator

1шт.

2

47869489

PIPE

from Radiator to Cooler

1шт.

3

47866772

PIPE

ASSY, Supply Cooler, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

6

47807198

PIPE

Return from Cooler

1шт.

7

47607395

PIPE

ASSY, Return Oil Cooler, Incl 8, 5 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 7

1шт.

9

47866774

PIPE

Return from Cooler

1шт.

10

47807204

PIPE

ASSY, Supply Cooler, Incl 11, 5 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Pipe, Incl in 10

1шт.

12

47807207

PIPE

ASSY, from Control Valve to Radiator, Incl 13, 5 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

Pipe, Incl in 12

1шт.

14

47471898

HOSE CLAMP,20mm - 32mm

4шт.

15

84475431

BRACKET

2шт.

16

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

17

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

18

16286124

BOLT,M6 x 20mm, 8.8 DAC

1шт.

19

47668503

BRACKET

1шт.

20

844-12020

BOLT,Hvy Hex, M12 x 20mm, Cl 8.8

1шт.

21

87571442

BRACKET

1шт.

22

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

23

87694267

BLOCK

1шт.

24

87326640

CLAMP,16mm ID

1шт.

25

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

26

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 26
