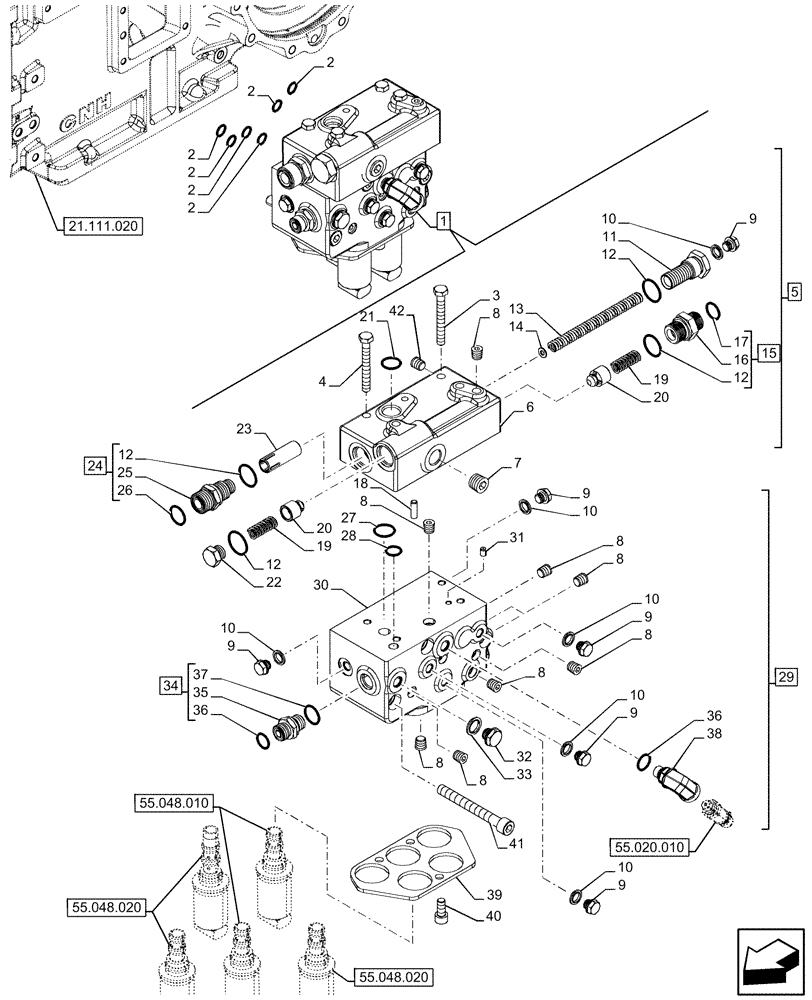

Запчасти Case IH FARMALL 120U (18.104.030) - VAR - 334114, 334117, 334779, 334780 - PTO CLUTCH, VALVE (18) - CLUTCH

1

84140159

CONTROL VALVE

ASSY, Incl 1 - 42

1шт.

2

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

3

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

4

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

5

84140153

CONTROL VALVE

ASSY, Incl 6 - 8 (Qty 1), 9 (Qty 1), 10 - 26, 44

1шт.

6

84135997

MANIFOLD VALVE

1шт.

7

83931497

PLUG,3/8-18 x 0.42

1шт.

8

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

10шт.

9

87535222

PLUG,Hex, M10 x 1 x 13mm

6шт.

10

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

6шт.

11

84136105

PLUG,M22 x 1.5

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

13

5157119

SPRING,11.5mm x 127mm

1шт.

14

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

15

47123674

HYD CONNECTOR

ASSY, Incl 12 (Qty 1), 16, 17 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

18

47137823

HYD CONNECTOR

1шт.

19

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

20

5169565

VALVE,By-Pass

2шт.

21

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

22

47123781

PLUG,M22 x 1.5

1шт.

23

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

24

87692954

HYD CONNECTOR

ASSY, Incl 12, 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

Manifold, Incl in 24

1шт.

26

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

28

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

29

5195592

CONTROL VALVE

ASSY, Incl 8 (Qty 9), 9 (Qty 5), 10 (Qty 5), 30 - 42

1шт.

30

NSS

NOT SOLD SEPARAT

Block, Incl in 29

1шт.

31

5171508

RESTRICTOR

1шт.

32

47488502

PLUG,Hex, M12 x 1.5

1шт.

33

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

34

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Connector, Incl in 34

1шт.

36

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

37

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

38

87537887

90 ELBOW

1шт.

39

5195317

PLATE

1шт.

40

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

41

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

42

14536290

PLUG,6mm

1шт.
