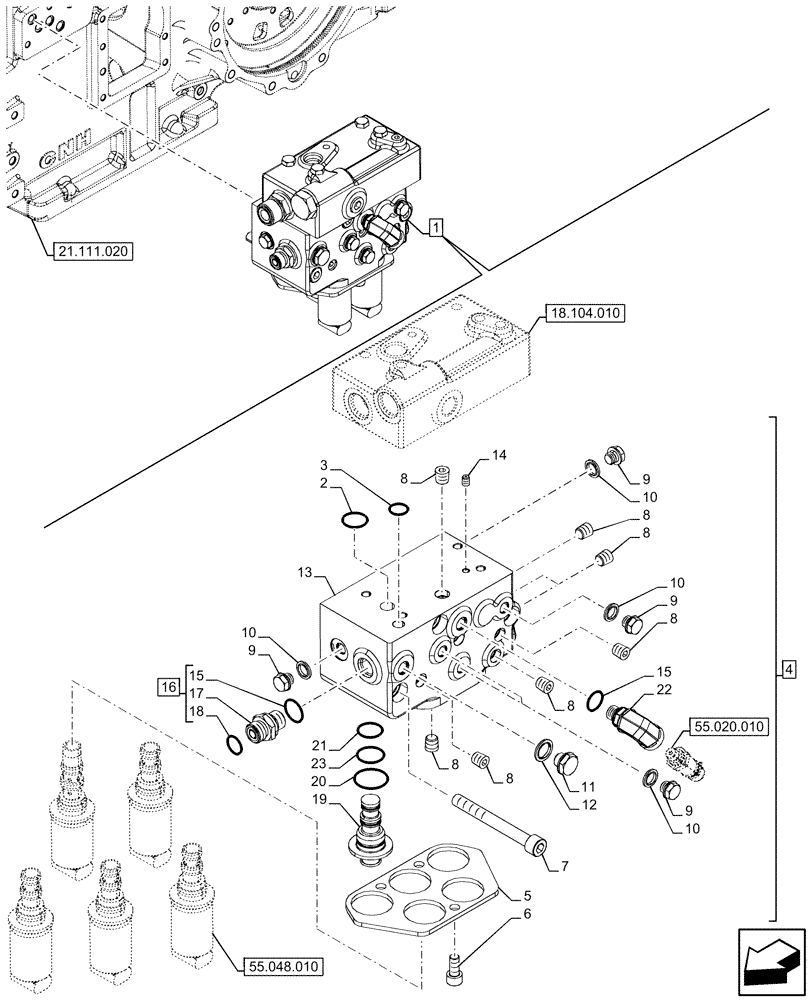

Запчасти Case IH FARMALL 120U (18.104.020) - VAR - 334114, 334117, 334775, 334779, 334780, 390430 - PTO CLUTCH, VALVE (18) - CLUTCH

1

84140162

CONTROL VALVE

ASSY, Incl 2 - 21

1шт.

2

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

3

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

4

5195591

CONTROL VALVE

ASSY, Incl 5 - 21

1шт.

5

5195317

PLATE

1шт.

6

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

7

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

8

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

9шт.

9

87535222

PLUG,Hex, M10 x 1 x 13mm

5шт.

10

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

5шт.

11

47488502

PLUG,Hex, M12 x 1.5

1шт.

12

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

13

NSS

NOT SOLD SEPARAT

Block, Incl in 4

1шт.

14

5171508

RESTRICTOR

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 15, 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

19

5195316

PLUG

1шт.

20

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

21

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

22

87537887

90 ELBOW

1шт.

23

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.
