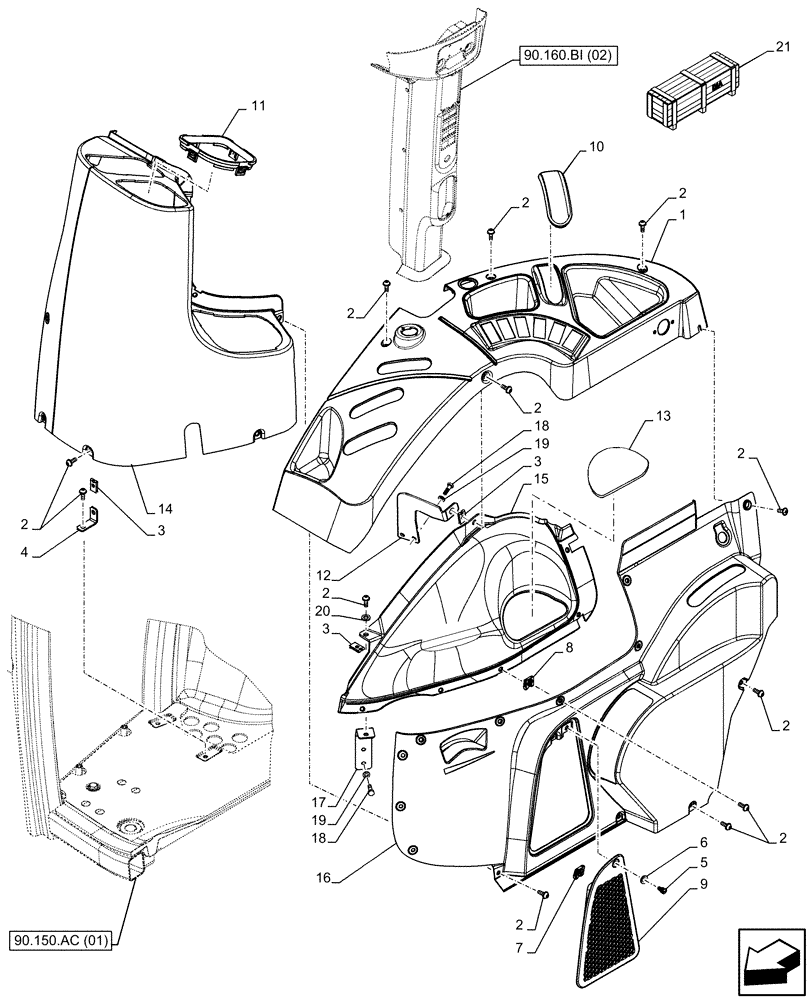

Запчасти Case IH FARMALL 120C (90.160.BL[04]) - VAR - 336125, 338125, 336780 - CAB, TRIM, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47514243

TRIM PANEL

RH, Upper

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

28шт.

3

14371774

SPRING NUT,M6, U, 12mm long

8шт.

4

84292077

BRACKET

RH

3шт.

5

84354393

PIN,18.8mm L

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

8

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

5шт.

9

84315050

FILTER COVER

RH

1шт.

10

84354389

PLUG

1шт.

Valid only for Models Power Shutlle Transmission

1шт.

11

84370125

INSERT

1шт.

12

47484158

BRACKET

1шт.

13

84409101

PLASTIC PLUG

1шт.

Valid only for Models Power Shutlle Transmission

1шт.

14

84315023

TRIM

RH

1шт.

15

84421222

TRIM PANEL

RH, Upper

1шт.

16

84315025

TRIM PANEL

RH

1шт.

17

84311409

BRACKET

1шт.

18

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

19

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

4шт.

20

895-30102

WASHER,6.6mm ID x 21mm OD x 1.6mm Thk

1шт.

21

719124720

DIA KIT, TRACTOR

2 Mid-mount Valves, Incl 11, 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
