Запчасти Case IH FARMALL 120C (90.160.BI[04]) - VAR - 391606, 743496 - PILLAR, TRIM, RH, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

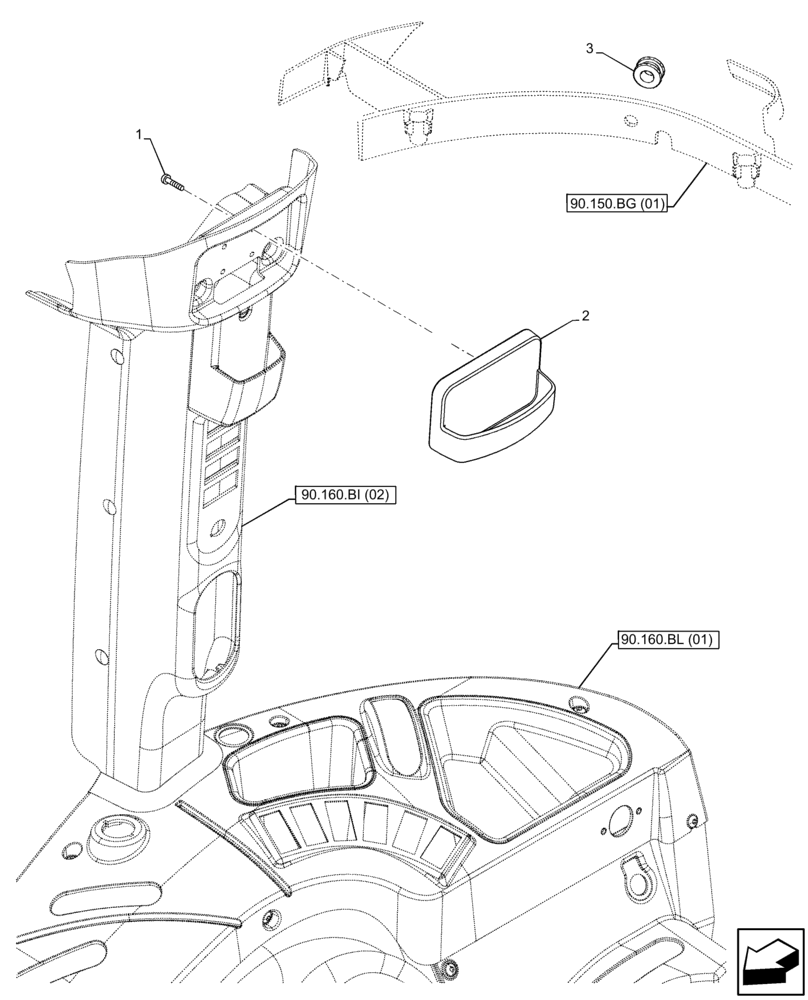

Схема запчастей Case IH FARMALL 120C - (90.160.BI[04]) - VAR - 391606, 743496 - PILLAR, TRIM, RH, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (01)
3
90.160.bi (02)
2
90.150.bg (01)
1

Артикул

Название

Примечание

Количество

1

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.

2

84347910

COVER ASSY

1шт.

3

47450993

PLASTIC PLUG

W/O Radio, 16mm

1шт.

Выбрано товаров: 3
