Запчасти Case IH FARMALL 120C (90.156.AE[02]) - VAR - 334183, 334211, 743573, 744588 - CAB, WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

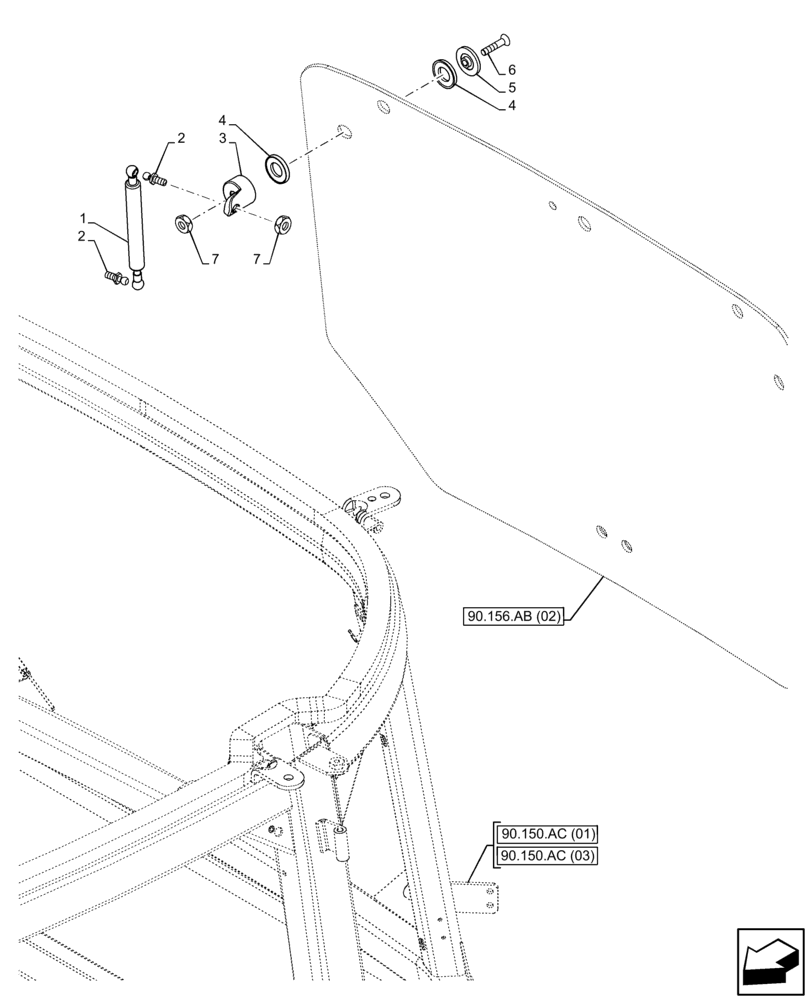

Схема запчастей Case IH FARMALL 120C - (90.156.AE[02]) - VAR - 334183, 334211, 743573, 744588 - CAB, WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
90.156.ab (02)
90.150.ac (01)
1
7
7
3
5
2
4
6
90.150.ac (03)

Артикул

Название

Примечание

Количество

1

84280589

GAS STRUT

2шт.

2

44910148

BALL STUD,M8 x 1.25

4шт.

3

44910149

ARTICULATION

2шт.

4

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

5

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

6

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

7

16104411

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 04, ZND

4шт.

Выбрано товаров: 7
