Запчасти Case IH FARMALL 120C (90.151.AD[03]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST & AIR SUSPENSION), BELT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

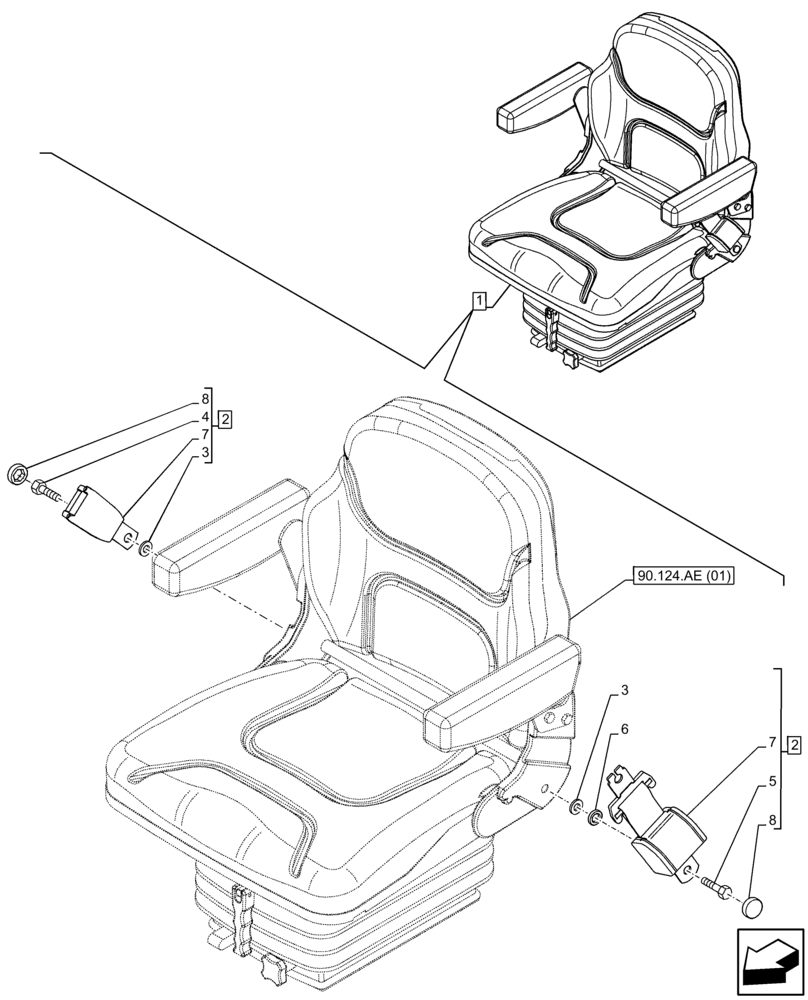

Схема запчастей Case IH FARMALL 120C - (90.151.AD[03]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST & AIR SUSPENSION), BELT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
3
3
7
90.124.ae (01)
2
1
7
8
4
2
8

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 8

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151

1шт.

2

84361200

SEAT BELT,51mm W x 1470mm L

ASSY, Incl 3 - 8

1шт.

3

84355679

LOCK WASHER,20.5mm OD x 13mm ID

20.5mm OD x 13mm ID

2шт.

4

5080270

SCREW,7/16 UNF x 25mm

1шт.

5

84361158

SCREW,7/16 UNF x 30mm

7/16 UNF x 30mm

1шт.

6

84361166

BUSHING,20mm OD x 12mm ID x 7.5mm L

20mm OD x 12mm ID x 7.5mm H

1шт.

7

84359362

SAFETY BELT

1шт.

8

5080271

COVER,17.5mm ID

17.5mm ID

2шт.

Выбрано товаров: 10
