Запчасти Case IH FARMALL 120C (90.151.AC[03]) - VAR - 334211, 391606, 743496, 743573 - W/O PASSENGER SEAT, PLUGS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

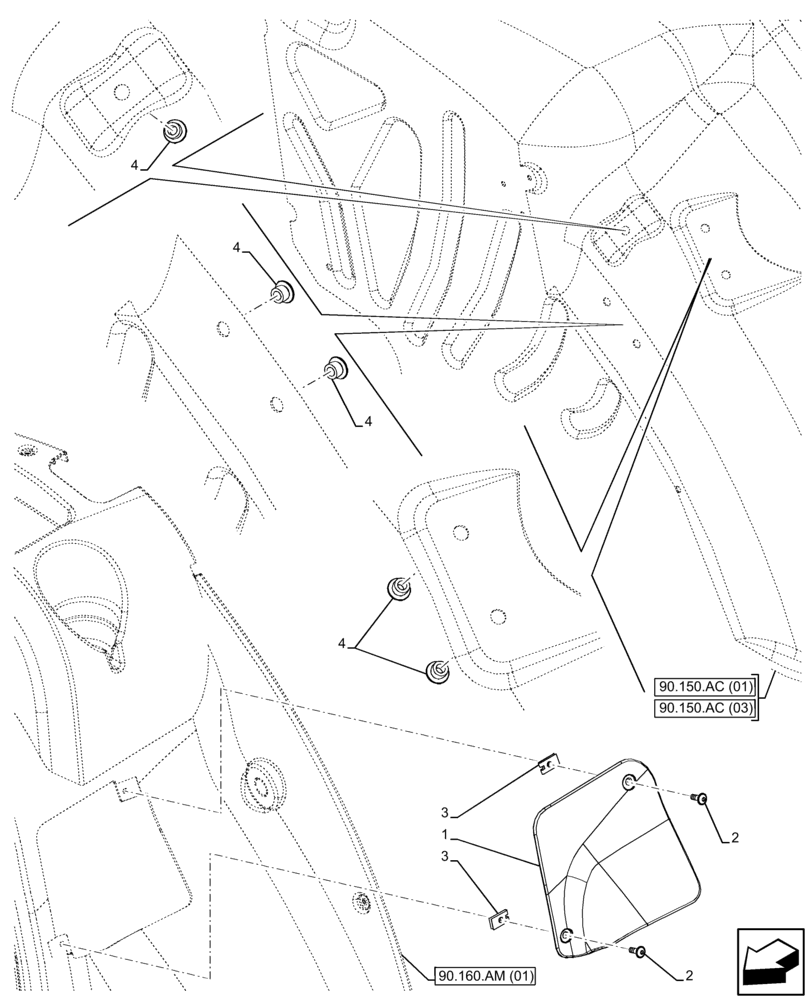

Схема запчастей Case IH FARMALL 120C - (90.151.AC[03]) - VAR - 334211, 391606, 743496, 743573 - W/O PASSENGER SEAT, PLUGS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
3
90.150.ac (03)
90.150.ac (01)
4
2
4
3
1
90.160.am (01)
2
4

Артикул

Название

Примечание

Количество

1

84316098

PLUG,Cradle WA

Wheat Color

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

2шт.

3

14371774

SPRING NUT,M6, U, 12mm long

2шт.

4

82003283

PLUG,10.5mm OD

5шт.

Выбрано товаров: 4
