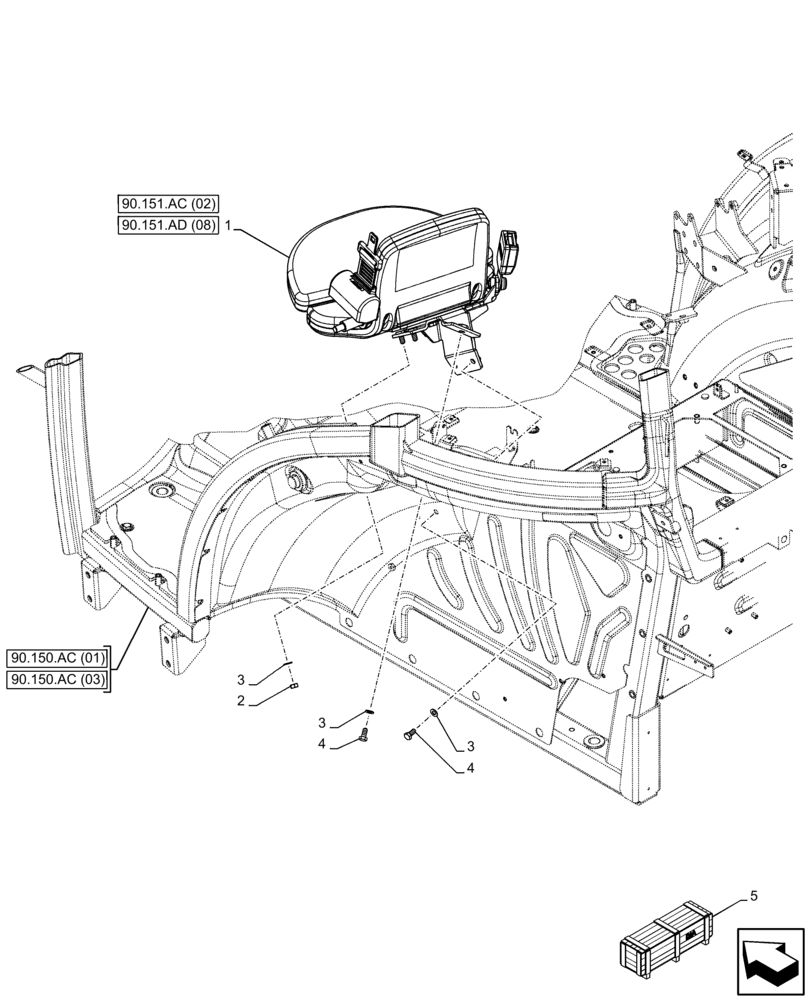

Запчасти Case IH FARMALL 120C (90.151.AC[01]) - VAR - 334183, 744588 - PASSENGER SEAT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47564639

INSTRUCTIONAL SEAT

SEAT ASSY, Fabric, Wheat

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

718121254

DIA KIT, TRACTOR

Passenger Seat - Belt, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
