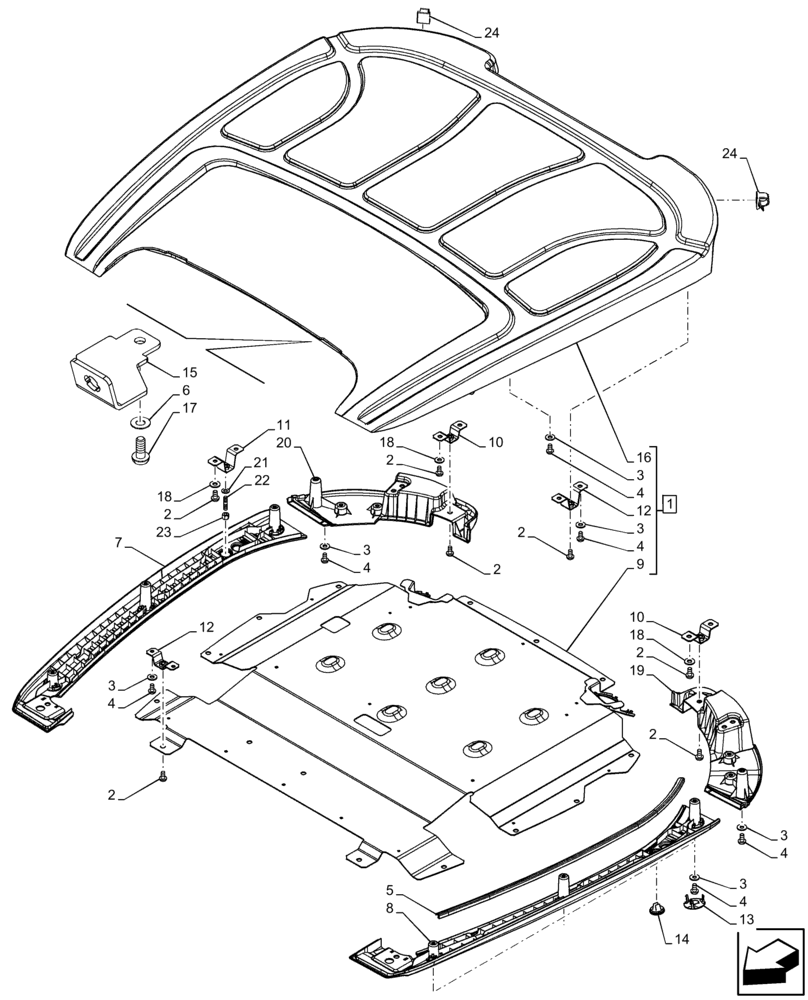

Запчасти Case IH FARMALL 120C (90.150.BG[04]) - VAR - 743573, 744588 - CAB ROOF, SPECIAL COLOR (WHITE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47712709

ROOF

White

1шт.

2

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

12шт.

3

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

30шт.

4

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

30шт.

5

84275319

RUBBER SEAL,897mm L

897mm

2шт.

6

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

7

47410967

PANEL

Black, RH

1шт.

8

47410992

PANEL

Black, LH

1шт.

9

84310702

STEEL PLATE

w/o Hatch

1шт.

10

84317193

BRACKET

Black

2шт.

11

84317195

BRACKET

Black

2шт.

12

84310794

BRACKET

Black

2шт.

13

84317182

PLUG,44mm OD, Black

Black, 44mm

6шт.

14

84317184

PLUG,35mm OD, Black

Black, 35mm

4шт.

15

47613002

BRACKET

1шт.

16

NSS

NOT SOLD SEPARAT

White Roof, Incl in 1

1шт.

17

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

18

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

19

84317189

PANEL

Black, LH, Rear

1шт.

20

84317188

PANEL

Black, RH, Rear

1шт.

21

13516924

STUD,M8 x 34mm L, Cl. 8.8

M8 x 12 x 22 Cl 8.8 DAC

6шт.

22

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

23

16104114

LOCK NUT,M8, Cl 8

M8

4шт.

24

5182865

CLIP

2шт.
