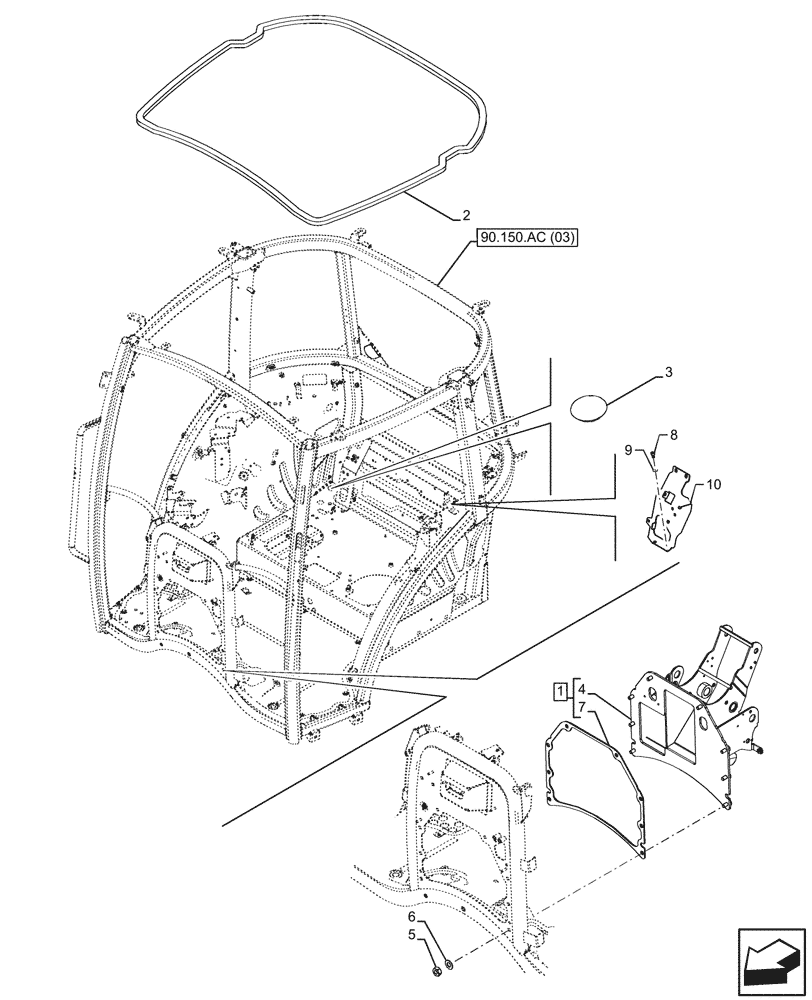

Запчасти Case IH FARMALL 120C (90.150.AC[04]) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - CAB FRAME, SPARK ARRESTER, HI-LO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47580766

SPARK ARRESTER

ASSY, Incl 4, 7

1шт.

2

47411372

RUBBER SEAL,30mm W x 4530mm L x 20mm Thk

1шт.

3

14508187

PLUG

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

5

12164721

NUT,M10 x 1.25, Cl 10

8шт.

6

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

8шт.

7

84265757

RUBBER SEAL,3mm Thk

1шт.

8

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

9

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

4шт.

10

47482445

BRACKET

1шт.
