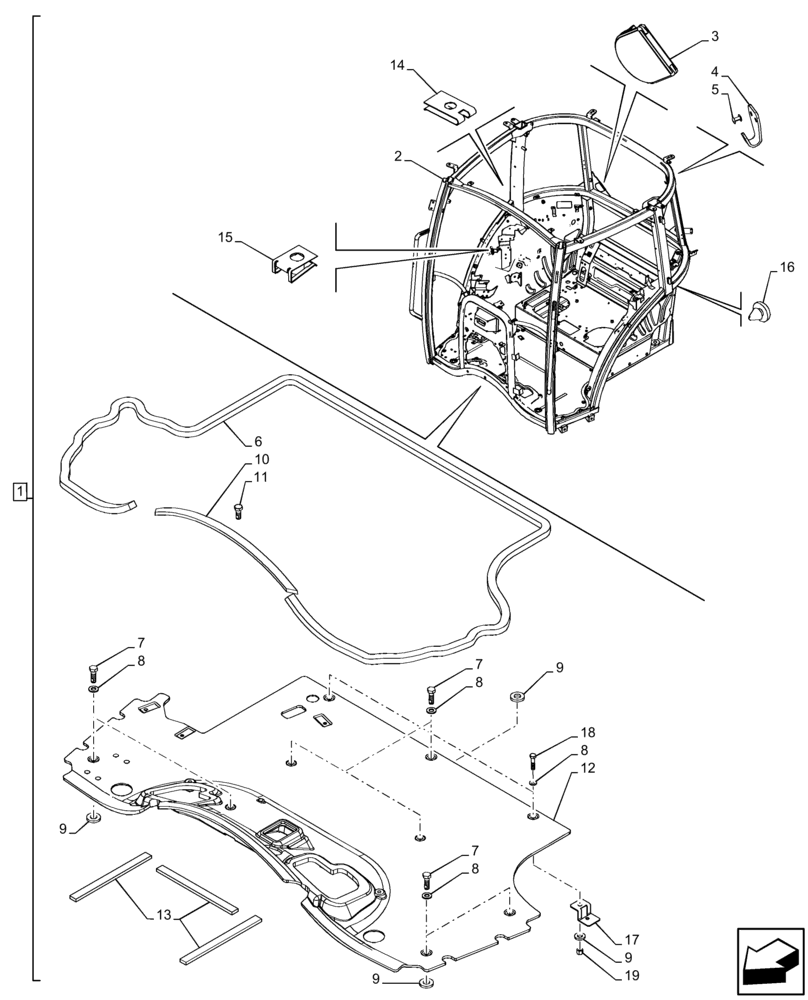

Запчасти Case IH FARMALL 120C (90.150.AC[03]) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - CAB FRAME, HI-LO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47665248

FRAME

ASSY, Incl 2 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

Cab Frame, Incl in 1

1шт.

3

84290317

PLUG

1шт.

4

84496617

COAT HOOK

1шт.

5

14642791

RIVET,Tr Hd, M4.8 x 12, Aluminum

2шт.

6

47547815

SEAL

1шт.

7

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

7шт.

8

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

9шт.

9

47546193

RUBBER WASHER,12mm ID x 25mm OD x 4mm Thk

9шт.

10

84555868

SEAL,510mm L

1шт.

11

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

1шт.

12

84316786

CARPET

1шт.

13

84555891

SEALING STRIP,20mm W x 250mm L x 8mm Thk

3шт.

14

14371774

SPRING NUT,M6, U, 12mm long

19шт.

15

14189071

SPRING NUT,M6

M6 STL ZND

1шт.

16

14624887

PLUG,5.5mm OD x 2.5mm

5.5 x 2.5mm BLK

2шт.

17

47682255

BRACKET

2шт.

18

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

19

16104121

NUT,M8 x 1.25, Cl 10

2шт.
