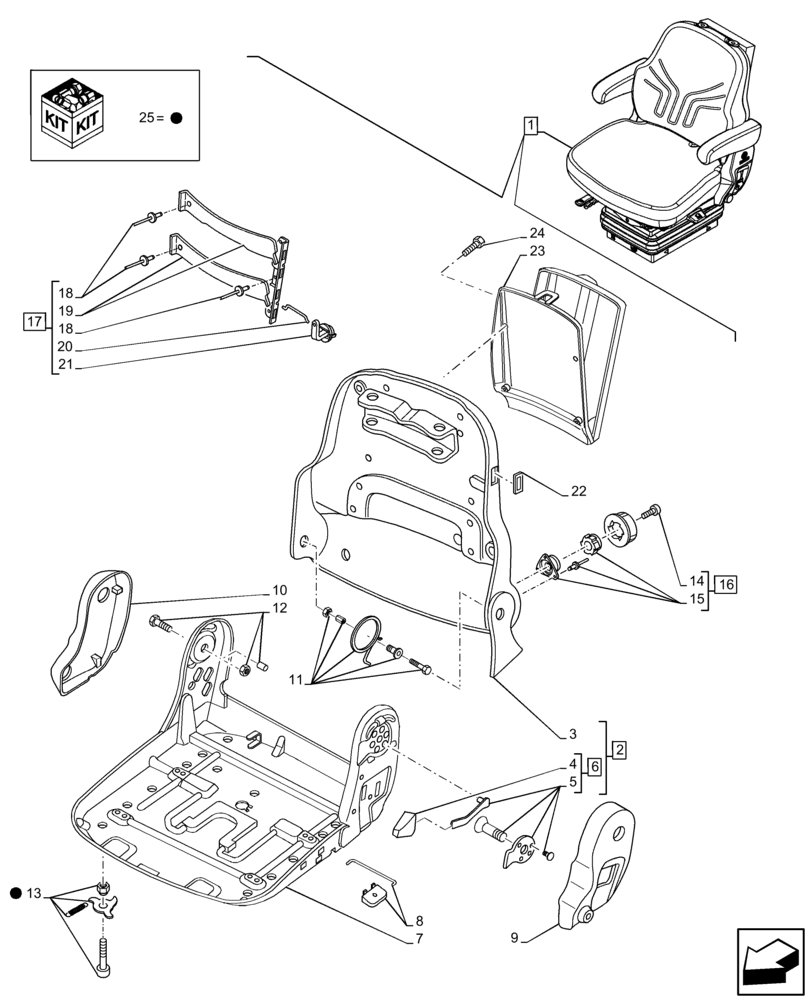

Запчасти Case IH FARMALL 120C (90.124.AM[02]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), FRAME, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47488681

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 25

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151

1шт.

2

84255306

KIT

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

4

345752A1

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Actuation, Incl in 6

1шт.

6

84255307

ADAPTER

ASSY, Incl 4, 5

1шт.

7

NSS

NOT SOLD SEPARAT

Seat Frame, Incl in 1

1шт.

8

82034959

HANDLE

1шт.

9

71491405

COVER

LH

1шт.

10

84171458

COVER

RH

1шт.

11

84191131

SET OF PARTS

Seat Scissor Bearings

1шт.

12

84280032

SCREW

1шт.

13

345775A1

LEVER

1шт.

14

82034964

HANDLE

1шт.

15

NSS

NOT SOLD SEPARAT

Lumbar Actuation, Incl in 16

1шт.

16

84191199

ACTUATOR

Lumbar Support, ASSY, Incl 14, 15

1шт.

17

345767A1

SUPPORT

Lumbar, ASSY, Incl 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

Rivet, Incl in 17

1шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 17

1шт.

20

NSS

NOT SOLD SEPARAT

Rod, Incl in 17

1шт.

21

NSS

NOT SOLD SEPARAT

Lever, Incl in 17

1шт.

22

47540083

PLUG

1шт.

23

71491415

UTILITY HOLDER

Pouch Document

1шт.

24

84247569

REPAIR KIT

Pouch Document

1шт.

25

84191203

CONTROL LEVER

1шт.
