Запчасти Case IH FARMALL 120C (90.120.BH[04]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

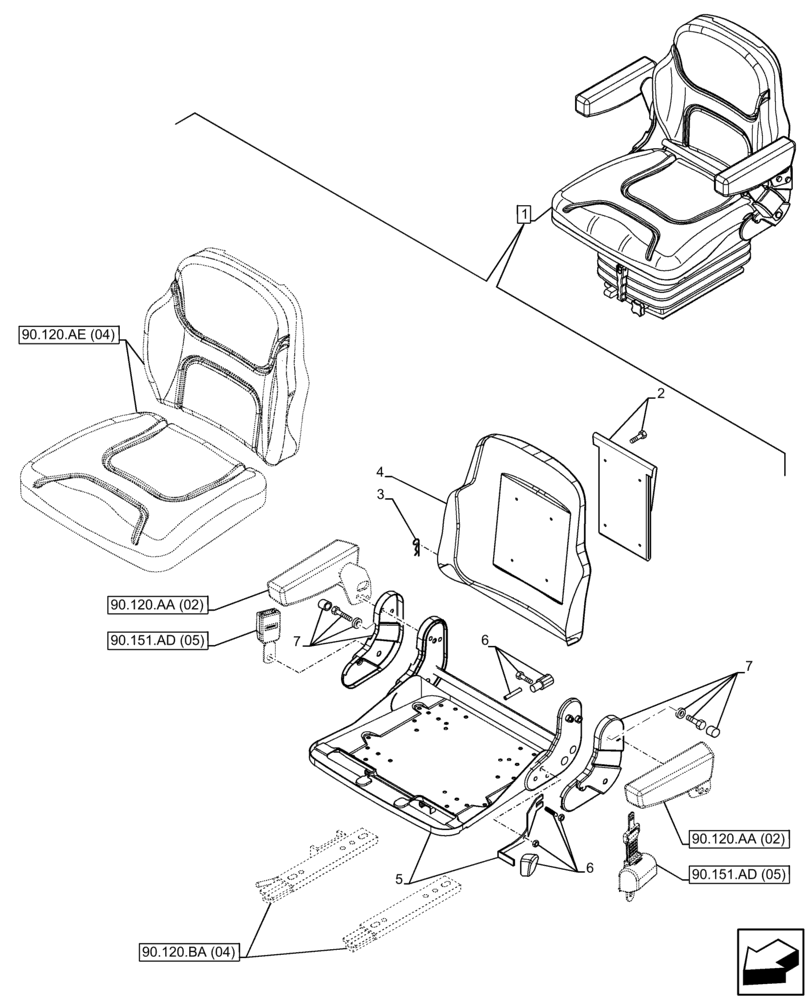

Схема запчастей Case IH FARMALL 120C - (90.120.BH[04]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
7
6
90.120.aa (02)
90.120.ba (04)
90.120.ae (04)
90.120.aa (02)
2
7
4
1
90.151.ad (05)
6
5
90.151.ad (05)

Артикул

Название

Примечание

Количество

1

84352965

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 7

1шт.

Mechanical Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Cushion Support & Hardware

1шт.

6

47387993

KIT

Hardware

1шт.

7

47388032

KIT

Hardware and Cover Armrests

1шт.

Выбрано товаров: 9
