Запчасти Case IH FARMALL 120C (90.120.AE[03]) - VAR - 390901 - DRIVER SEAT, CUSHION, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

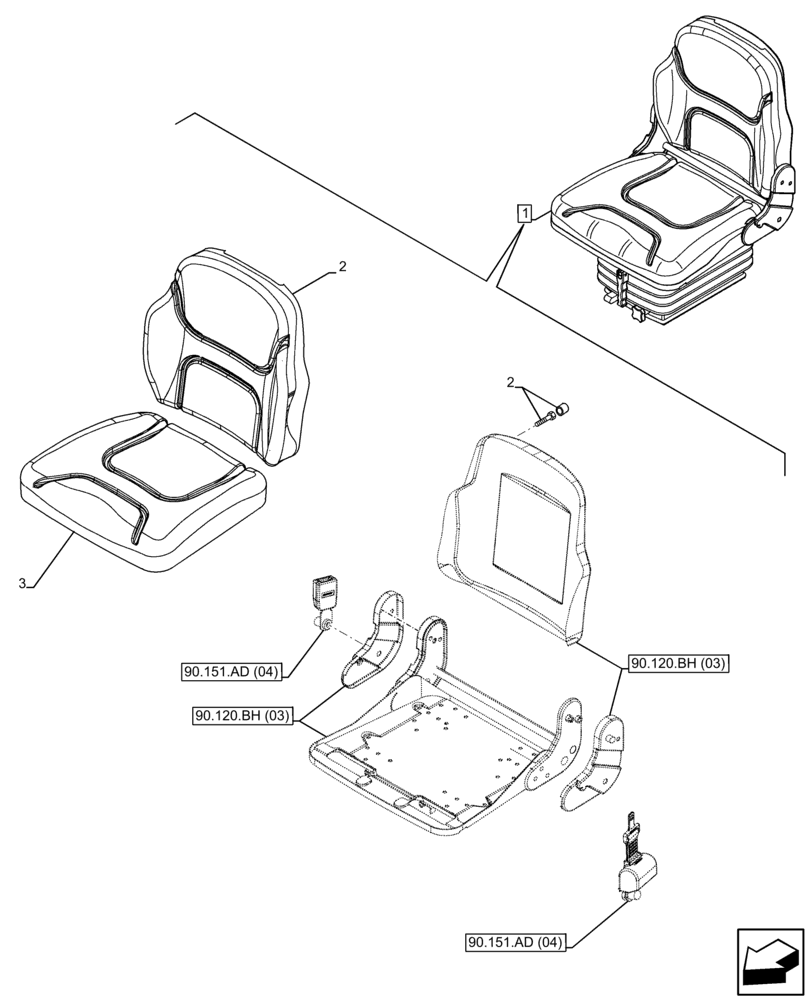

Схема запчастей Case IH FARMALL 120C - (90.120.AE[03]) - VAR - 390901 - DRIVER SEAT, CUSHION, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.120.bh (03)
3
2
90.151.ad (04)
90.151.ad (04)
90.120.bh (03)
2

Артикул

Название

Примечание

Количество

1

84352963

SEAT

ASSY, Vinyl, Wheat, Incl 2, 3

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

84539309

BACKREST

Vinyl, Wheat

1шт.

3

47449315

SEAT CUSHION

Vinyl, Wheat

1шт.

Includes Operator's Presence Sensor (DOPS), Not Serviced Separately

1шт.

Выбрано товаров: 6
