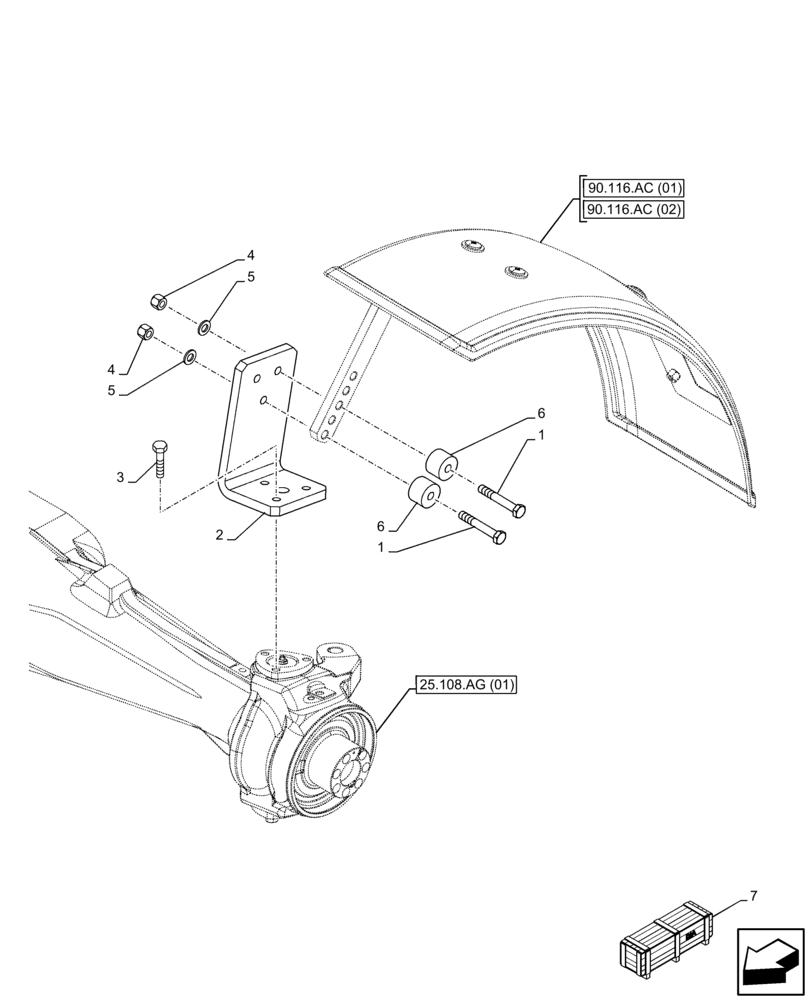

Запчасти Case IH FARMALL 120C (90.116.BA[01]) - VAR - 744673 - FRONT FENDER, SUPPORT, NARROW, 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

2

5185292

SUPPORT

1шт.

3

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

3шт.

4

16105014

LOCK NUT,M12 x 1.25

2шт.

5

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

6

5166193

SPACER,13mm ID x 40mm OD x 28mm L

2шт.

7

710167700

DIA KIT, TRACTOR

Front Fender (310mm), Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

710168700

DIA KIT, TRACTOR

Front Fender (400mm), Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
