Запчасти Case IH FARMALL 120C (90.116.AC[13]) - VAR - 334190 - REAR FENDER, LEFT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

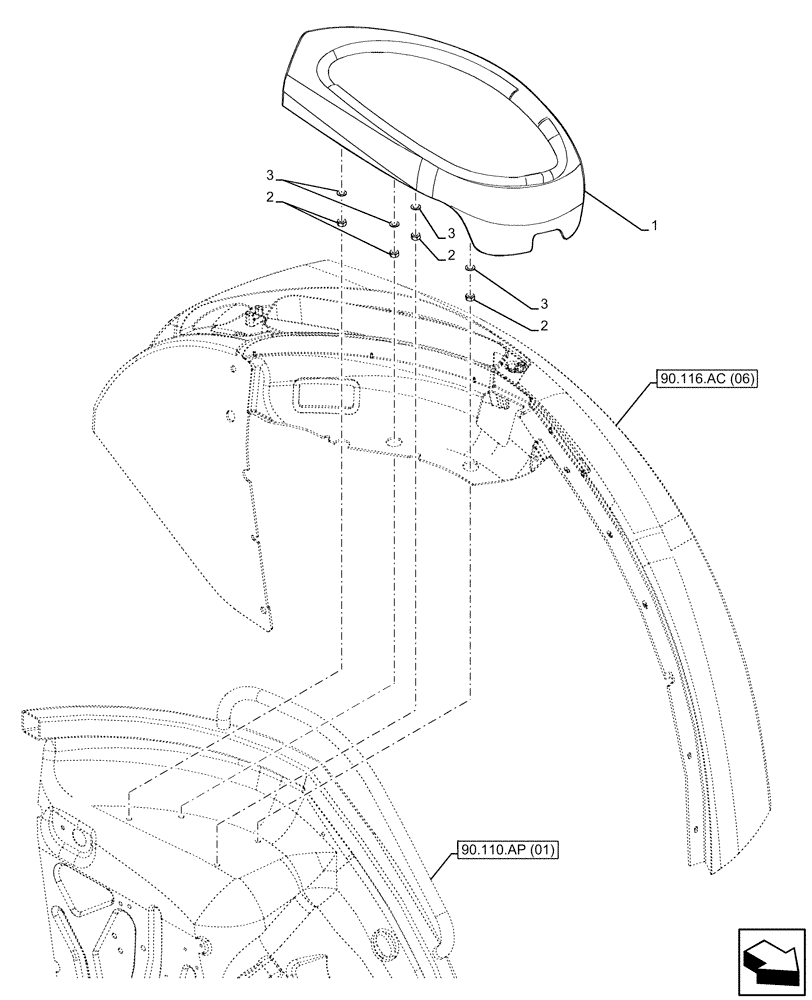

Схема запчастей Case IH FARMALL 120C - (90.116.AC[13]) - VAR - 334190 - REAR FENDER, LEFT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (06)
3
2
3
2
1
2
3
90.110.ap (01)

Артикул

Название

Примечание

Количество

1

47670661

LINING

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

3

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

Выбрано товаров: 3
