(90.116.AC[11]) - VAR - 744599 - REAR FENDER EXTENSION (18.4R34), WIDE

Запчасти Case IH FARMALL 120C (90.116.AC[11]) - VAR - 744599 - REAR FENDER EXTENSION (18.4R34), WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

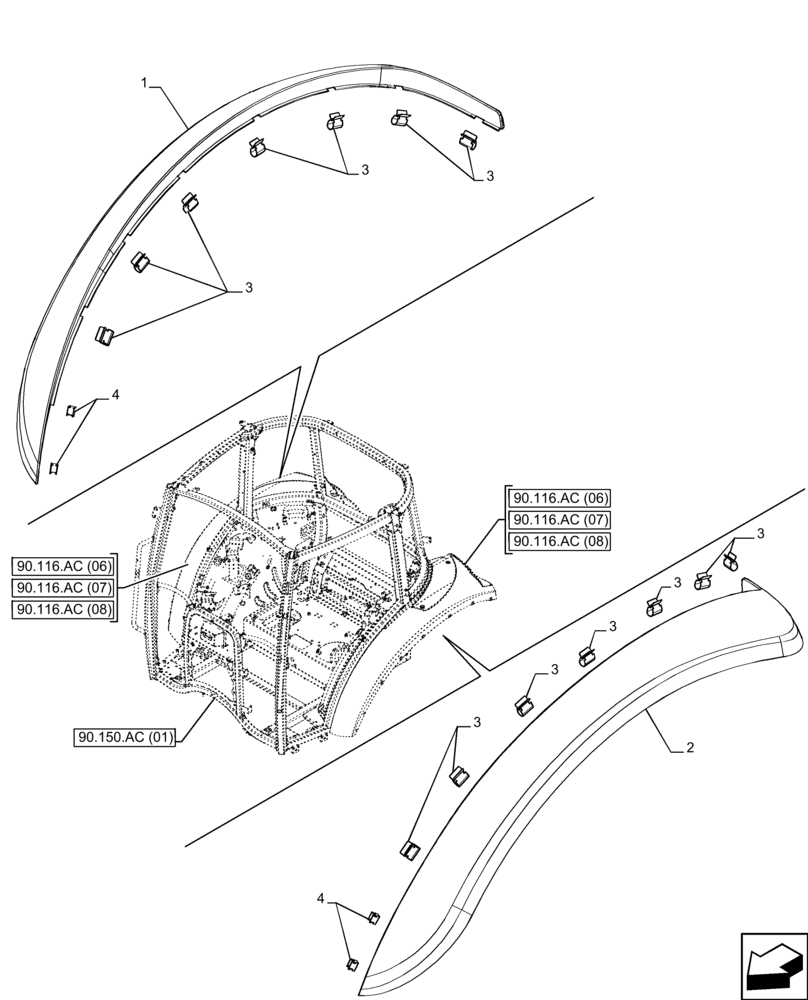

Схема запчастей Case IH FARMALL 120C - (90.116.AC[11]) - VAR - 744599 - REAR FENDER EXTENSION (18.4R34), WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.116.ac (06)
90.116.ac (08)
3
4
3
2
3
90.150.ac (01)
1
3
90.116.ac (07)
4
90.116.ac (08)
90.116.ac (07)
3
3
90.116.ac (06)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47698087

FENDER EXTENSION

RH, Black

1шт.

2

47698045

FENDER EXTENSION

LH, Black

1шт.

3

82010838

SPRING CLIP,0.5mm Thk

14шт.

4

47467257

CLIP

4шт.
