(90.116.AC[04]) - VAR - 744674 - DYNAMIC FRONT FENDER (400MM), LARGE (20’), 4WD

Запчасти Case IH FARMALL 120C (90.116.AC[04]) - VAR - 744674 - DYNAMIC FRONT FENDER (400MM), LARGE (20’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

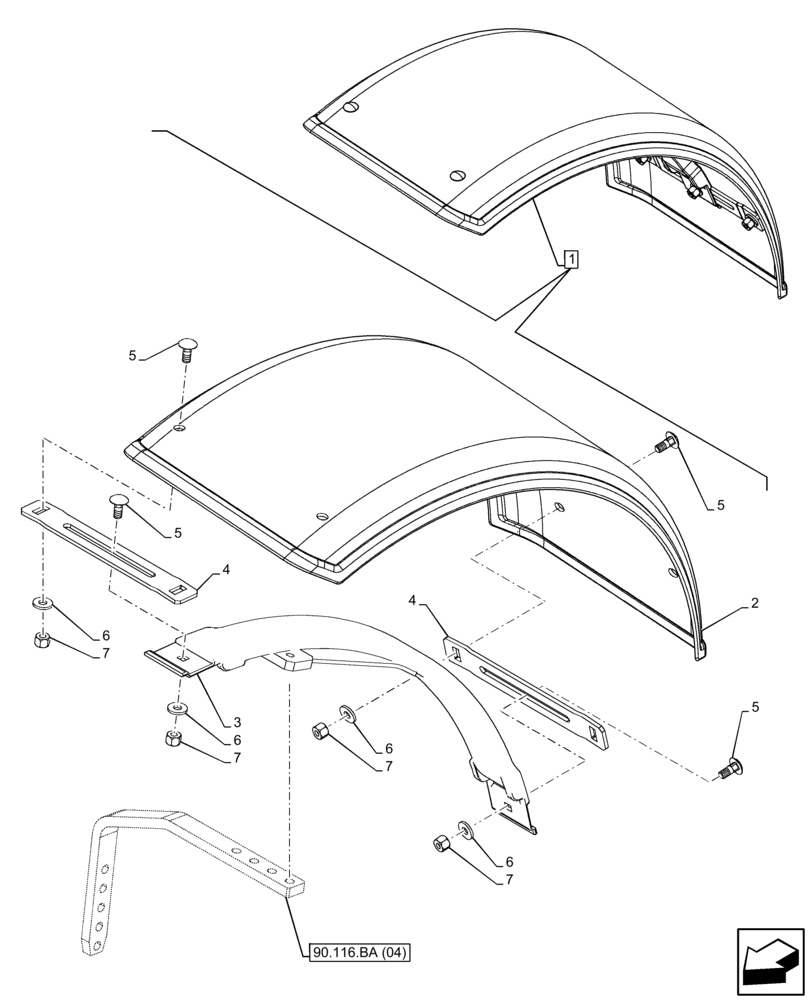

Схема запчастей Case IH FARMALL 120C - (90.116.AC[04]) - VAR - 744674 - DYNAMIC FRONT FENDER (400MM), LARGE (20’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
1
7
7
90.116.ba (04)
7
3
4
5
4
5
5
6
6
6
2
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87529751

FRONT FENDER,400mm

ASSY , Incl 2 - 7

2шт.

2

5185182

COVER ASSY

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 31mm, Hex

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.
