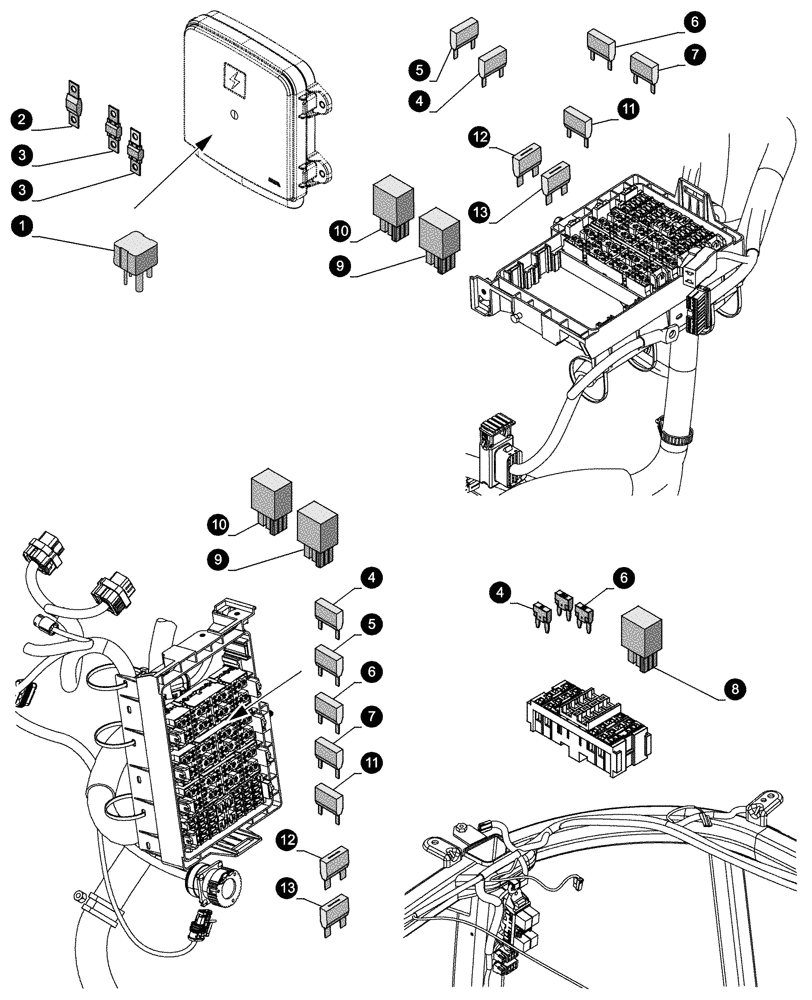

Запчасти Case IH FARMALL 120C (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE

1

82030798

RELAY,12V, 70A

1шт.

Valid with Var. 336839, 336841

1шт.

2

87422637

FUSE,125A, Midival

1шт.

3

87548130

FUSE,60A, Midival

1шт.

4

84153830

FUSE,5A, Mini, Beige

1шт.

Valid with Var. 340202, 340203, 340204, 340205

1шт.

5

10401190

FUSE,20A, Mini, Yellow

1шт.

Valid with T4.100-TRACTOR - TIER 4B, T4.100-TRACTOR HI-LO - TIER 4B, T4.110-TRACTOR - TIER 4B, T4.110-TRACTOR HI-LO - TIER 4B, T4.120-TRACTOR - TIER 4B, T4.120-TRACTOR HI-LO - TIER 4B, T4.90-TRACTOR - TIER 4B, T4.90-TRACTOR HI-LO - TIER 4B Models

1шт.

Valid with Var. 340202, 340203

1шт.

6

87524877

FUSE,15A, Mini, Blue

1шт.

Valid with FARMALL 100C-TRACTOR - TIER 4B, FARMALL 100C-TRACTOR HI-LO - TIER 4B, FARMALL 110C-TRACTOR - TIER 4B, FARMALL 110C-TRACTOR HI-LO - TIER 4B, FARMALL 120C-TRACTOR - TIER 4B, FARMALL 120C-TRACTOR HI-LO - TIER 4B, FARMALL 90C-TRACTOR - TIER 4B, FARMALL 90C-TRACTOR HI-LO - TIER 4B Models

1шт.

Valid with Var. 340202, 340203, 340204, 340205

1шт.

7

87522597

FUSE,10A, Mini, Red

1шт.

Valid with FARMALL 100C-TRACTOR - TIER 4B, FARMALL 100C-TRACTOR HI-LO - TIER 4B, FARMALL 110C-TRACTOR - TIER 4B, FARMALL 110C-TRACTOR HI-LO - TIER 4B, FARMALL 120C-TRACTOR - TIER 4B, FARMALL 120C-TRACTOR HI-LO - TIER 4B, FARMALL 90C-TRACTOR - TIER 4B, FARMALL 90C-TRACTOR HI-LO - TIER 4B Models

1шт.

Valid with Var. 340202, 340203

1шт.

8

87604032

RELAY,12V, 30A, Micro

Red N.O.

1шт.

Valid with Var. 340204, 340205

1шт.

9

84157157

RELAY,12V, 20A, Micro

12V, 20A, Microrelay

1шт.

Valid with Var. 340202, 340203

1шт.

10

84157161

RELAY,12V, 20A

Microrelay

1шт.

Valid with Var. 340202, 340203

1шт.

11

84152583

FUSE,7.5A, Mini, Brown

1шт.

Valid with Var. 340202, 340203

1шт.

12

5190333

FUSE,40A, Maxi, Orange

1шт.

Valid with Var. 340203, 333756, 334193, 391756

1шт.

13

82012388

FUSE,30A, Maxival, Green

1шт.

Valid with Var. 340202, 340203, 334888, 334991, 334192, 334194

1шт.
