Запчасти Case IH FARMALL 120C (90.108.AB[14]) - VAR - 336744, 336746 - LOADER ARM, MODEL IDENTIFICATION DECAL, W/DIVERTER, W/ SELF-LEVELING (90) - PLATFORM, CAB, BODYWORK AND DECALS

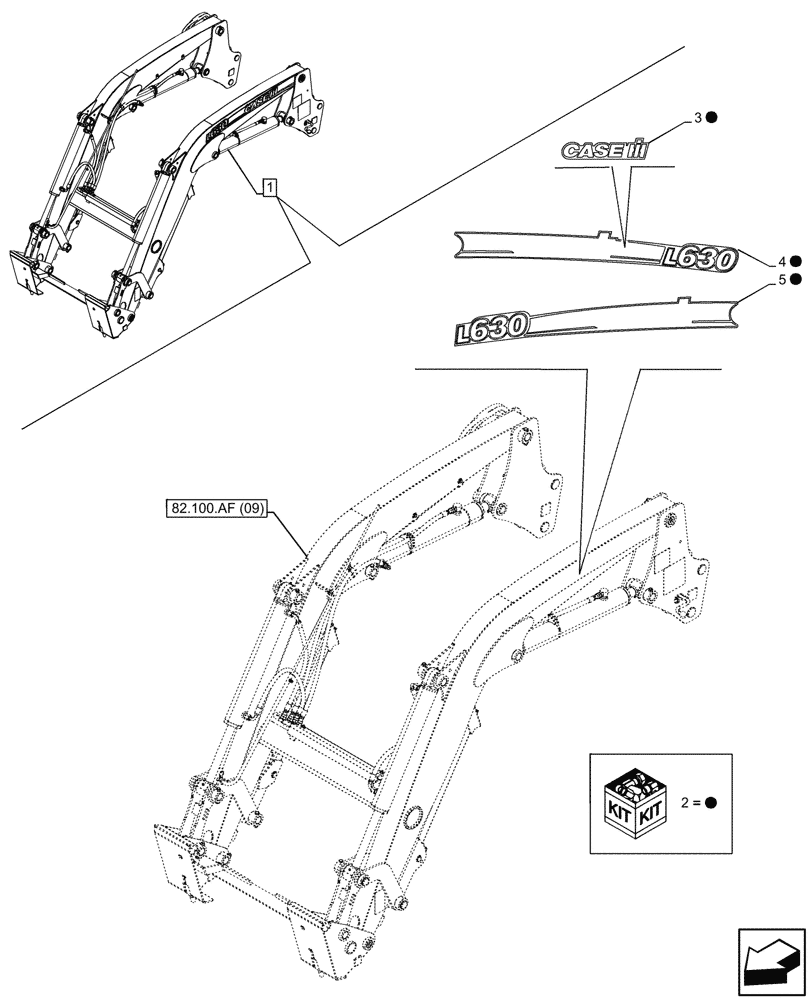

Схема запчастей Case IH FARMALL 120C - (90.108.AB[14]) - VAR - 336744, 336746 - LOADER ARM, MODEL IDENTIFICATION DECAL, W/DIVERTER, W/ SELF-LEVELING (90) - PLATFORM, CAB, BODYWORK AND DECALS
82.100.af (09)
5
3
2
4
2
2
2
1

Артикул

Название

Примечание

Количество

1

47696359

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AA (07), 82.100.AF (15), 82.100.AF (16), 82.100.BG (07), 82.300.AB (07), 82.300.AX (11), 82.300.AY (07), 90.108.AC (33)

1шт.

SSL Tool Attach.

1шт.

1

47696344

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AA (07), 82.100.AF (15), 82.100.AF (16), 82.100.BG (07), 82.300.AB (07), 82.300.AX (12), 82.300.AY (07), 90.108.AC (33)

1шт.

EU Tool Attach.

1шт.

2

84602339

DECAL KIT

Incl, 3 - 5

1шт.

Include also Decal in Figure 90.108.AC (33)

1шт.

3

87647875

DECAL,400mm L

2шт.

4

84524628

DECAL

1шт.

5

84524627

DECAL

1шт.

Выбрано товаров: 11
