Запчасти Case IH FARMALL 120C (88.100.90[02]) - DIA KIT, TELESCOPIC EXTERNAL REAR VIEW MIRROR (88) - ACCESSORIES

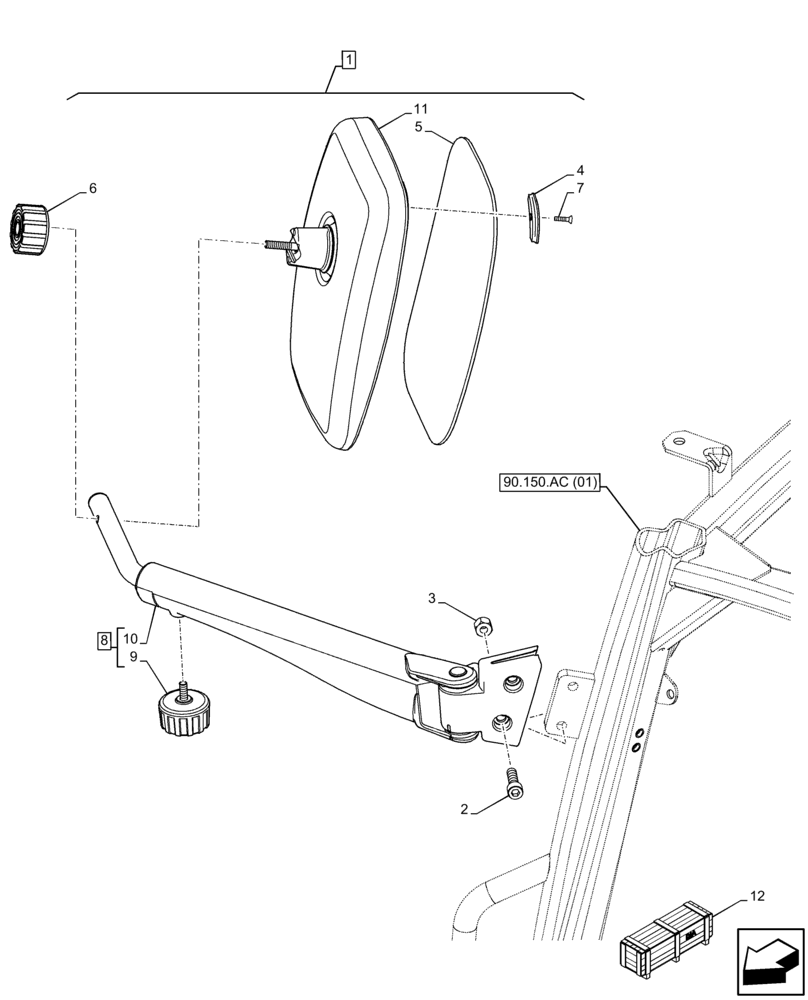

Схема запчастей Case IH FARMALL 120C - (88.100.90[02]) - DIA KIT, TELESCOPIC EXTERNAL REAR VIEW MIRROR (88) - ACCESSORIES
11
5
2
6
90.150.ac (01)
1
3
12
8
4
7
10
9

Артикул

Название

Примечание

Количество

1

87339177

MIRROR ASSY.

Incl 4 - 7, 11

2шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

87531094

BRACKET

4шт.

5

82035218

MIRROR,300mm x 200mm

1шт.

6

82016257

KNOB

1шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

87314381

MIRROR ARM

LH, ASSY, Incl 9, 10

1шт.

8

84398575

MIRROR ARM

RH, ASSY

1шт.

9

87365131

KNOB

2шт.

10

NSS

NOT SOLD SEPARAT

Telescopic Arm, Incl in 8

2шт.

11

NSS

NOT SOLD SEPARAT

Mirror Body, Incl in 1

2шт.

12

710879950

DIA KIT, TRACTOR

2 Telescopic Rear View Mirror, Incl 1 - 12

1шт.

Выбрано товаров: 13
