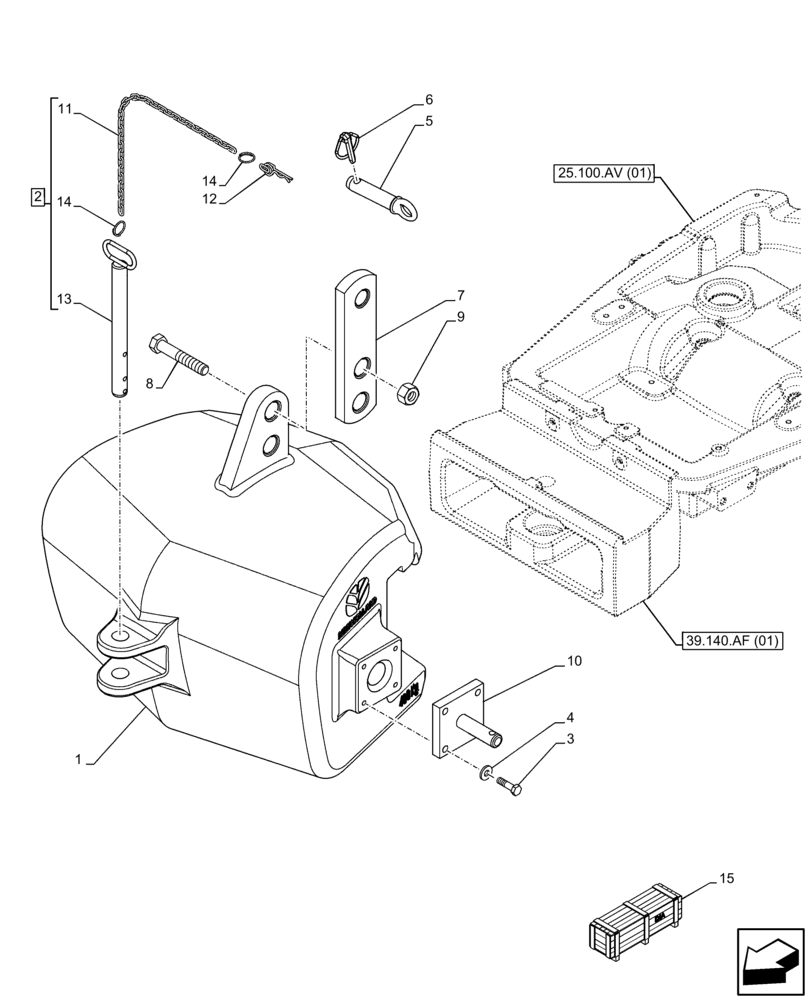

Запчасти Case IH FARMALL 120C (88.100.39[03]) - DIA KIT, MONOLITIC BALLAST (400 KG) (88) - ACCESSORIES

1

47525274

WEIGHT

1шт.

2

47132417

PIN,3.6mm OD x 64mm L

ASSY, Incl 11 - 14

1шт.

3

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

8шт.

4

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

8шт.

5

822483

PIN,25.5mm OD x 137mm L

1шт.

6

5166585

LOCK PIN,11mm OD

1шт.

7

87492165

ROD

2шт.

8

15883034

SCREW,Hex, M30 x 2 x 120mm, Cl 10.9

2шт.

9

12166714

NUT

2шт.

10

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

11

NSS

NOT SOLD SEPARAT

Chain, Incl in 2

1шт.

12

44901190

COTTER PIN,6.3mm x 77.6mm L

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

14

44901192

SNAP RING,25mm ID

2шт.

15

718900070

DIA KIT, TRACTOR

Front Ballast Monolitic (400Kg), Incl 1 - 14

1шт.
