Запчасти Case IH FARMALL 120C (88.100.35[09]) - DIA KIT, 2ND REMOTE CONTROL VALVE (88) - ACCESSORIES

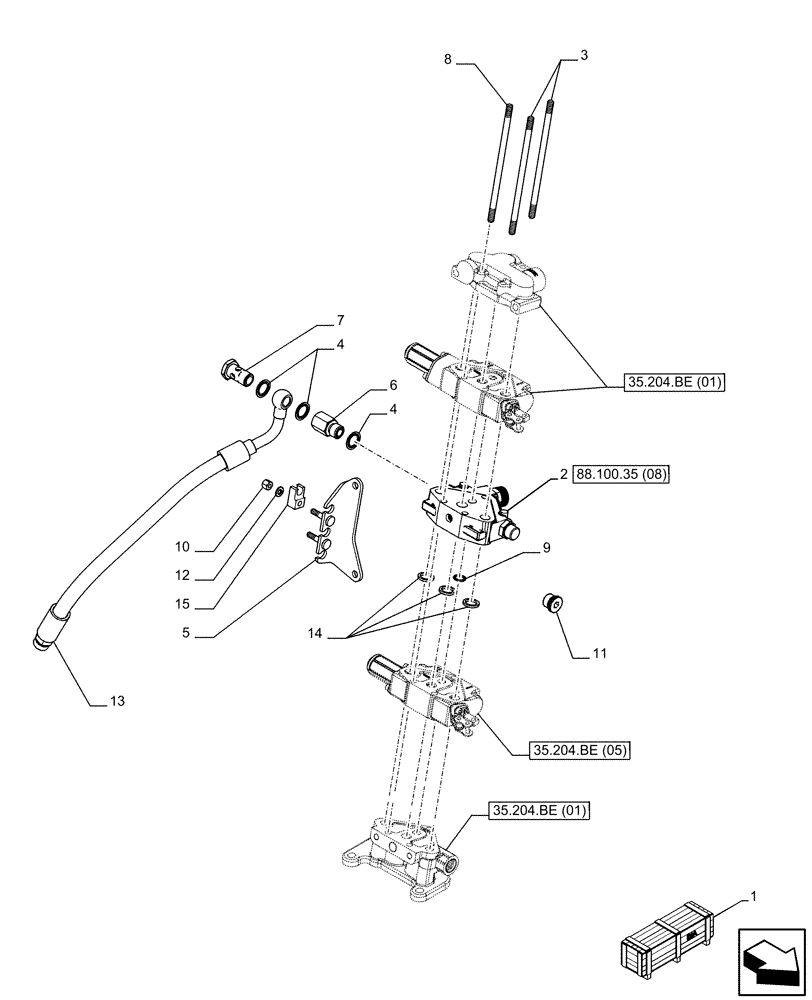

Схема запчастей Case IH FARMALL 120C - (88.100.35[09]) - DIA KIT, 2ND REMOTE CONTROL VALVE (88) - ACCESSORIES
35.204.be (01)
2
13
4
7
5
11
9
6
10
14
3
4
1
15
12
8
88.100.35 (08)
35.204.be (05)
35.204.be (01)

Артикул

Название

Примечание

Количество

1

719405701

DIA KIT, TRACTOR

Flow Control Valve for eDC W/ 1 or 2 Rear Remotes, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

87397107

CONTROL VALVE

ASSY

1шт.

3

5146463

THREADED ROD,3/8" - 24 x 7-5/8"

2шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

3шт.

5

84343728

BRACKET

1шт.

6

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

1шт.

7

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

8

84346587

STUD

1шт.

9

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

1шт.

10

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

11

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

1шт.

12

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

13

47757205

PIPE

1шт.

14

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

3шт.

15

47132225

BRACKET

1шт.

Выбрано товаров: 16
