(55.518.AT[02]) - VAR - 334183, 744588 - WINDSHIELD WASH RESERVOIR, DELUXE CAB

Запчасти Case IH FARMALL 120C (55.518.AT[02]) - VAR - 334183, 744588 - WINDSHIELD WASH RESERVOIR, DELUXE CAB (55) - ELECTRICAL SYSTEMS

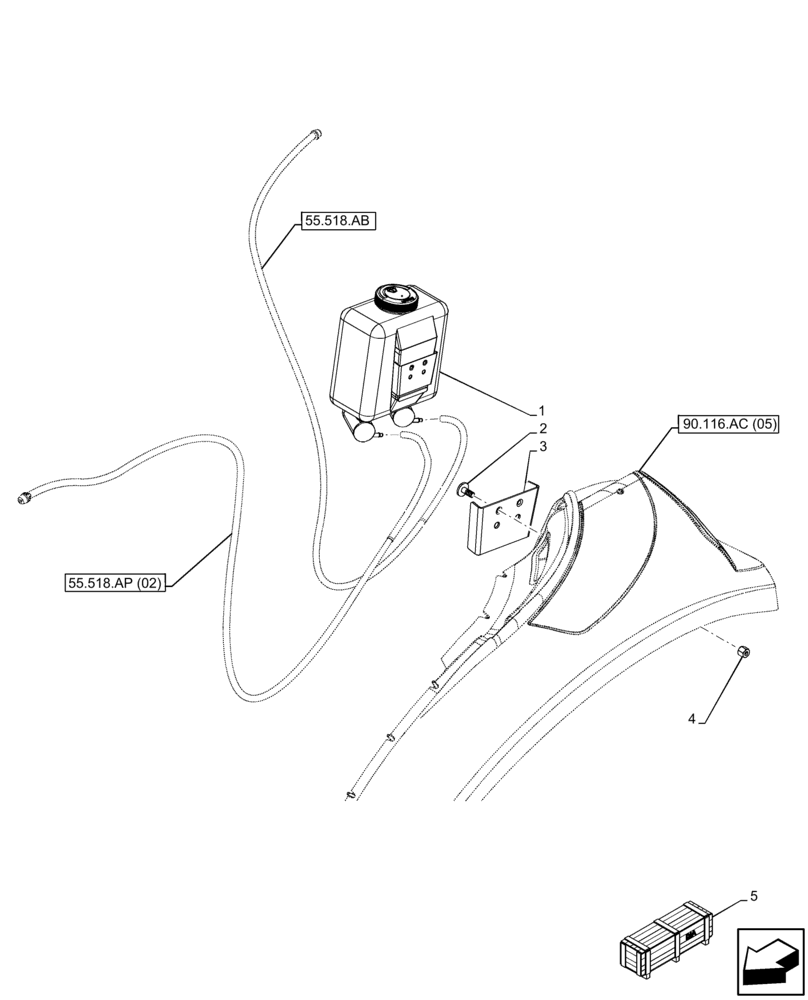

Схема запчастей Case IH FARMALL 120C - (55.518.AT[02]) - VAR - 334183, 744588 - WINDSHIELD WASH RESERVOIR, DELUXE CAB (55) - ELECTRICAL SYSTEMS
55.518.ap (02)
2
4
3
5
1
90.116.ac (05)
55.518.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47837340

RESERVOIR, WINDSHIEL

1шт.

2

14071914

SCREW,Cheese Hd, M5 x 12mm, Cl 5.8

2шт.

3

47643684

BRACKET

1шт.

4

12574111

NUT,M5 x .8, Cl 8

2шт.

5

710642250

DIA KIT, TRACTOR

Rear Wiper and Washer, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
