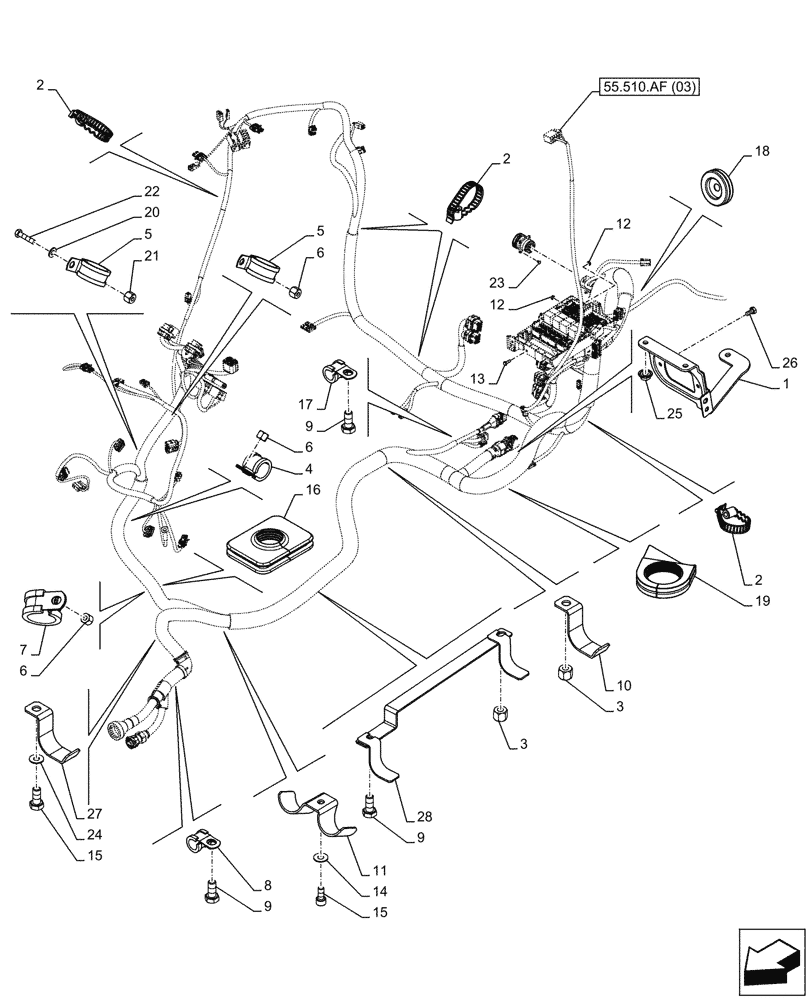

Запчасти Case IH FARMALL 120C (55.510.AF[04]) - CAB MAIN WIRE HARNESS, CLIP, HI-LO (55) - ELECTRICAL SYSTEMS

1

47728404

BRACKET

1шт.

2

85805383

CABLE TIE

4шт.

3

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

4

10441690

HOSE CLIP,18mm, Coat, P Type

18mm

1шт.

5

10417901

RETAINER,26mm, Coat, 7mm Bolt Hole, P Type

26mm

2шт.

6

12574211

NUT,M6 x 1, Cl 8

4шт.

7

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

1шт.

8

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

30mm

1шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

10

84530712

BRACKET

1шт.

11

84564064

BRACKET

1шт.

12

15896211

NUT,M6, Cl 8

2шт.

13

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

14

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

15

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

16

84408117

GROMMET

1шт.

17

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12mm

1шт.

18

10397780

INSULATING RING

M22 x 30 x 38mm

1шт.

19

84550801

GROMMET

1шт.

20

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

21

15896214

NUT,M6, Cl 8

1шт.

22

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

23

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

24

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

25

13046111

LOCK NUT,Flg Lock, M6

3шт.

26

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

27

84530713

BRACKET

1шт.

28

47688393

BRACKET

1шт.
