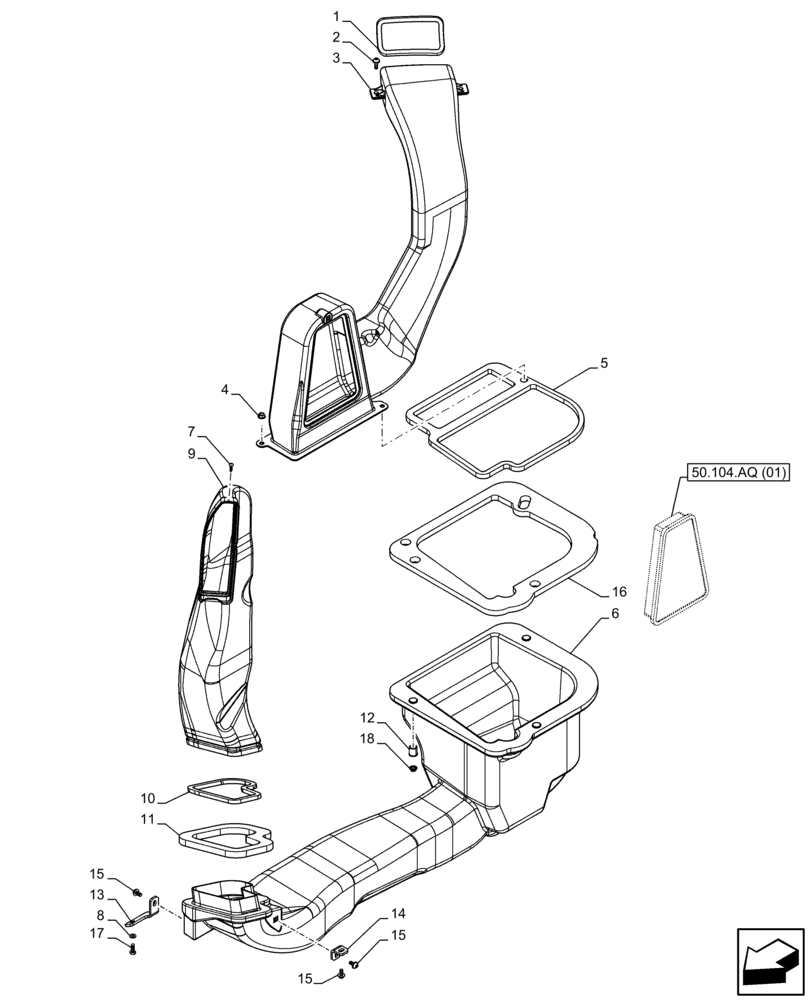

Запчасти Case IH FARMALL 120C (50.104.AO[01]) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - CAB, HEATER, AIR DUCT, RH (50) - CAB CLIMATE CONTROL

1

47526938

GASKET,Section, 15mm x 20mm

15 x 20mm

1шт.

2

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

3

84268721

AIR DUCT

RH

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

84227353

GASKET

RH

1шт.

6

84241383

AIR DUCT

1шт.

7

5182260

SELF-TAP SCREW,M5 x 16mm L

1шт.

8

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.

9

84222340

AIR DUCT

RH

1шт.

10

84350446

GASKET

1шт.

11

84558849

GASKET

RH

1шт.

12

47592529

BUSHING,12mm ID x 15.9mm OD x 19mm L

12 x 16mm

3шт.

13

84332658

BRACKET

1шт.

14

84556935

BRACKET

1шт.

15

84349415

SCREW,Torx, Round HD, M6 x 12mm, Cl 10.9

3шт.

16

47382803

INSULATION

RH

1шт.

17

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

18

13046111

LOCK NUT,Flg Lock, M6

M6 R50 ZND

3шт.
