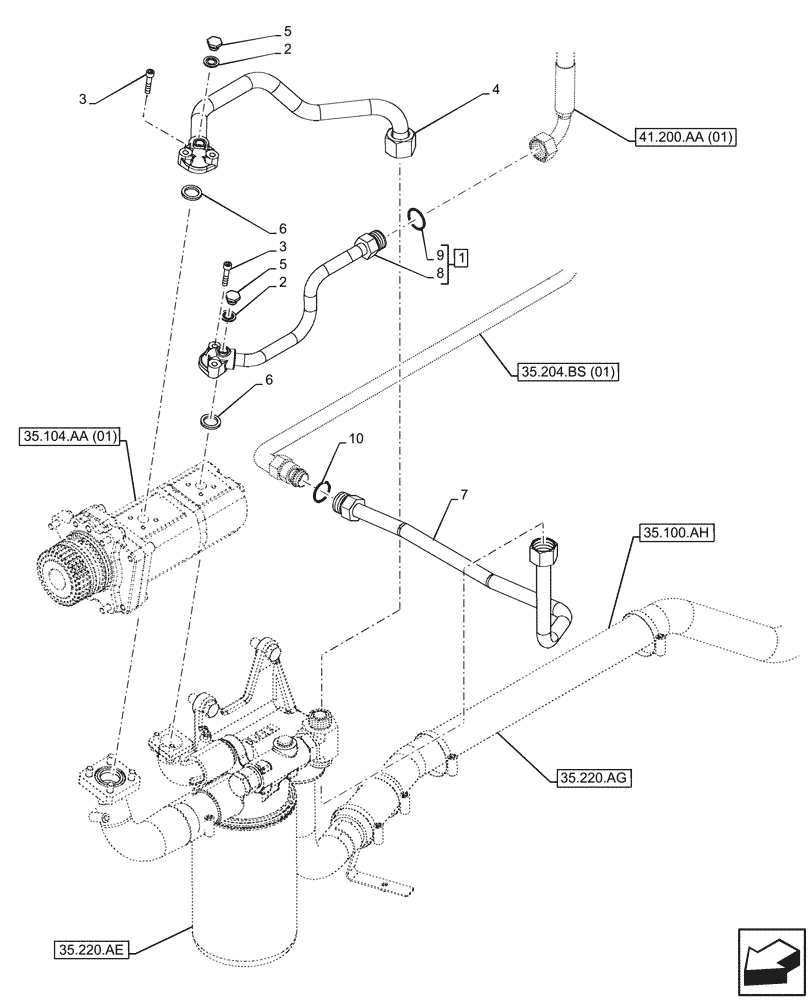

Запчасти Case IH FARMALL 120C (35.220.AD) - VAR - 337323, 743560 - HYDRAULIC PUMP, LINE (35) - HYDRAULIC SYSTEMS

1

47421387

TUBE

ASSY, Incl 8, 9

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

3

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

4шт.

4

47479514

TUBE

from Pump to Oil Filter

1шт.

5

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

6

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

2шт.

7

47777075

PIPE

Delivery, from Filter to Remote control Valve, ASSY, Incl 10

1шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
