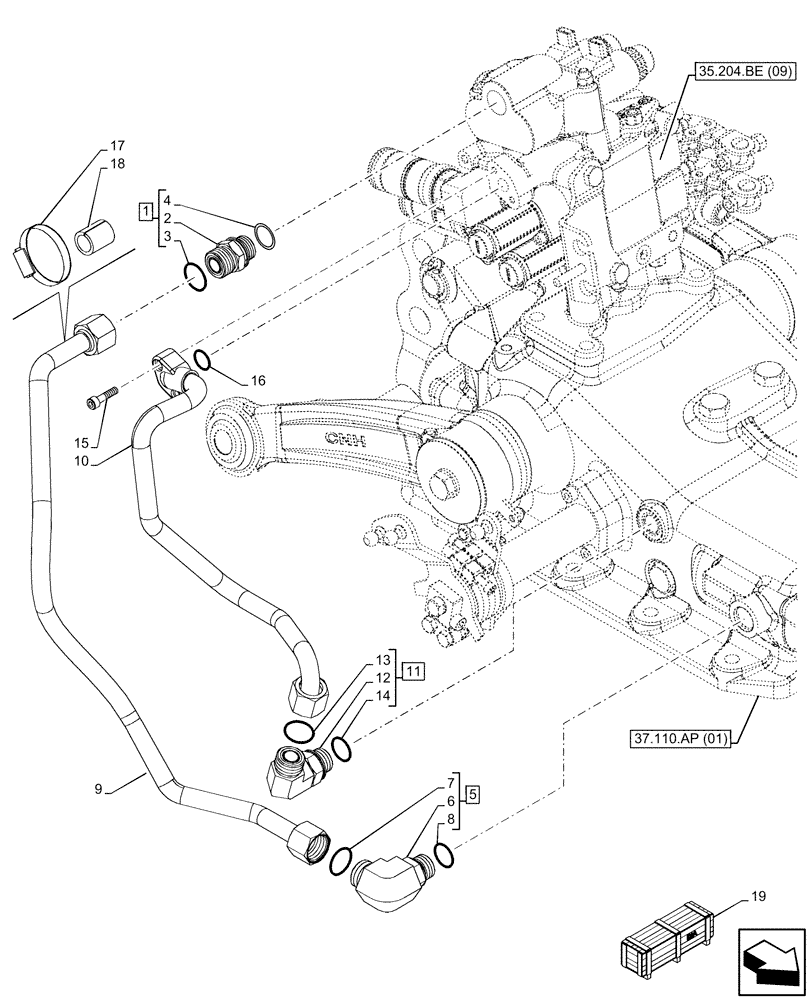

Запчасти Case IH FARMALL 120C (35.204.BE[11]) - VAR - 743569 - 2 REMOTE CONTROL VALVE, W/ 4 DELUXE COUPLERS, DISTRIBUTOR, COMPONENTS, HI-LO, CAB (35) - HYDRAULIC SYSTEMS

1

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 1

1шт.

3

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

5

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl in 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

47675312

PIPE

1шт.

10

47606879

TUBE

1шт.

11

5194728

90 ELBOW

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

16

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

17

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

18

4959735

SPACER,18mm ID x 25mm OD x 30mm L

2шт.

19

719405701

DIA KIT, TRACTOR

Flow Control Valve for EDC W/ 1 or 2 Rear Remotes, Incl 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
