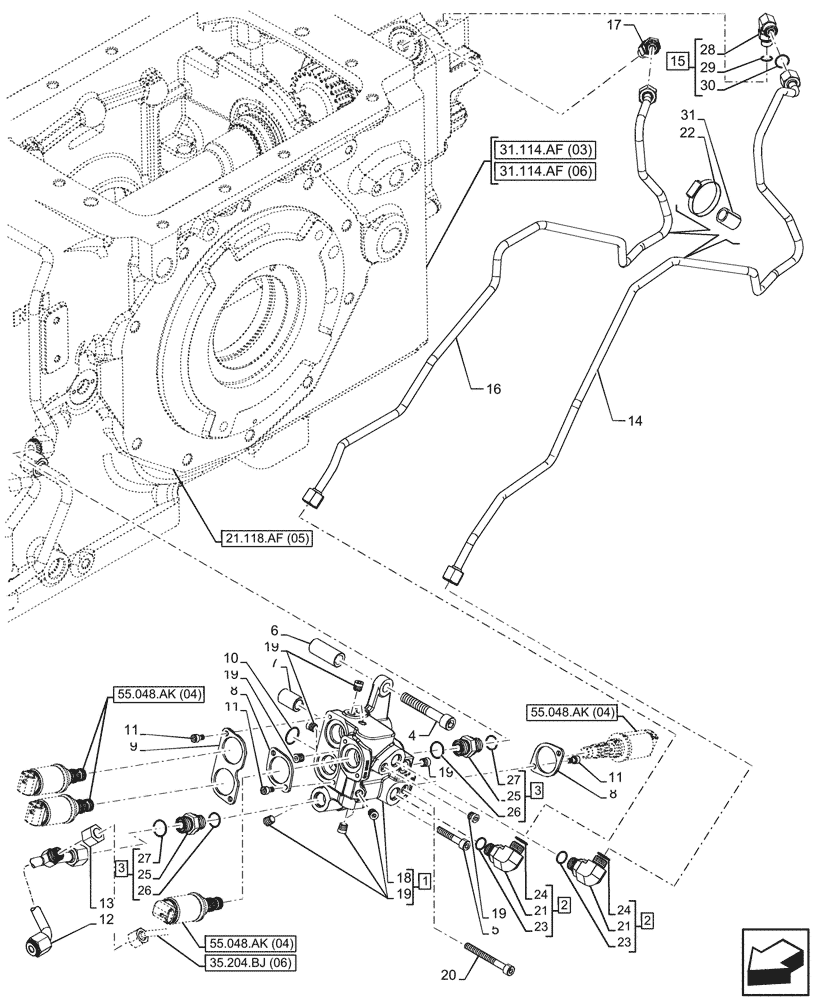

Запчасти Case IH FARMALL 120C (31.104.AR[05]) - VAR - 337323, 743560 - PTO, CONTROL VALVE, 4WD, HI-LO (31) - IMPLEMENT POWER TAKE OFF

1

84366530

VALVE

ASSY, Incl 18, 19

1шт.

2

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 21 (Qty 1), 23(Qty 1), 24 (Qty 1)

2шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

4

14332021

SCREW

M12 x 1.25 x 75 8.8 ZND

1шт.

5

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

1шт.

6

84366578

SPACER,13mm ID x 20mm OD x 47mm L

1шт.

7

84364460

SPACER,13mm ID x 20mm OD x 29mm L

1шт.

8

5194826

BRACKET

2шт.

9

84356033

RETAINER,3mm Thk

1шт.

10

638-53200

O-RING,2.65mm Thk x 20mm ID, Cl 5, 75 Duro

1шт.

11

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

6шт.

12

84492709

TUBE

To Transmission Control Valve

1шт.

13

9625546

CAP,11/16" - 16 ORFS

1шт.

14

47708264

PIPE

To Clutch PTO

1шт.

15

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 24 (Qty 1), 28, 29

1шт.

16

47708262

PIPE

To Brake PTO

1шт.

17

47699219

45 ELBOW

1шт.

18

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

19

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

14шт.

20

14332921

SCREW,Hex M12 x 1.25 x 140mm

M12 x 1.25 x 75 8.8 ZND

1шт.

21

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

22

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

29

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

30

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

31

4959735

SPACER,18mm ID x 25mm OD x 30mm L

2шт.
