Запчасти Case IH FARMALL 120C (27.120.AF[06]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, SHAFT, PLANETARY GEAR, HEAVY DUTY, 4WD, HI-LO (27) - REAR AXLE SYSTEM

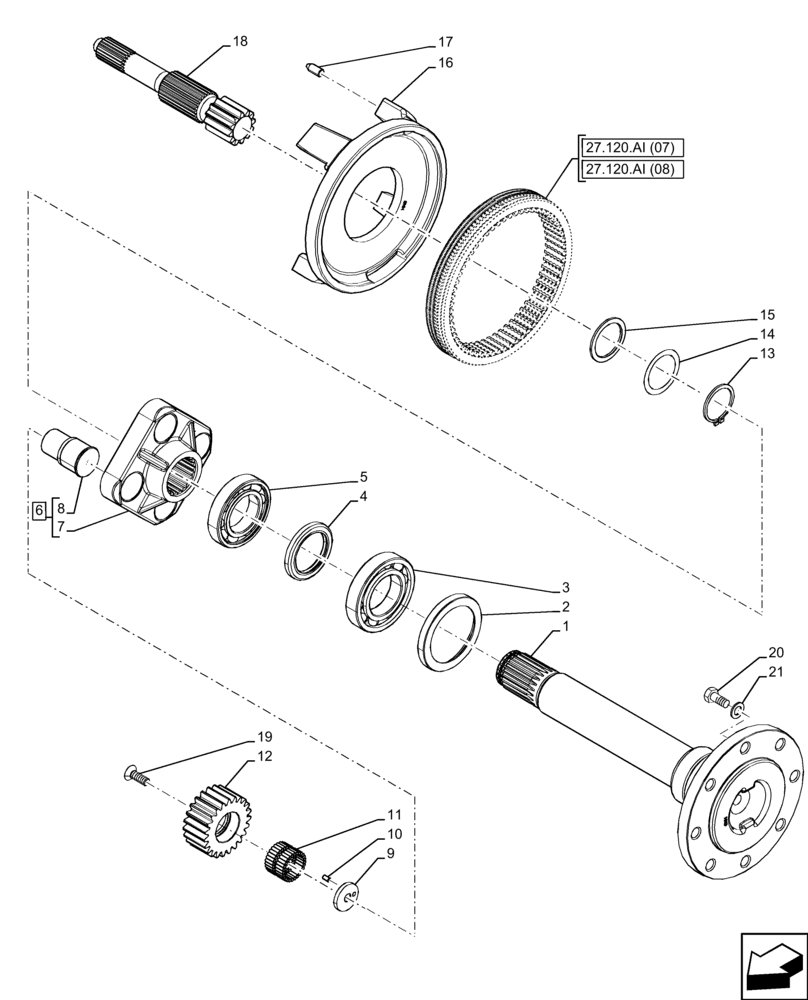

Схема запчастей Case IH FARMALL 120C - (27.120.AF[06]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, SHAFT, PLANETARY GEAR, HEAVY DUTY, 4WD, HI-LO (27) - REAR AXLE SYSTEM
19
8
10
18
9
27.120.ai (07)
27.120.ai (08)
11
3
12
20
4
6
21
15
16
13
7
14
2
1
5
17

Артикул

Название

Примечание

Количество

1

47477248

AXLE

1шт.

2

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

1шт.

3

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

1шт.

4

5124206

SEAL,70mm ID x 100mm OD x 10mm Thk

1шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

6

47565294

PLANET CARRIER

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

8

47565298

PIN,46.8mm OD x 90.7mm L

4шт.

9

47565302

SPACER,13mm ID x 49mm OD x 7mm L

4шт.

10

10489520

PIN,6mm OD x 12mm L

4шт.

11

47565305

NEEDLE BEARING,Needle, 40mm ID x 54mm OD x 21mm W

4шт.

12

47565187

GEAR,23T, 54mm ID, 58mm L

4шт.

13

84191677

CIRCLIP

Ext 55mm

1шт.

14

84472864

SHIM,55.3mm ID x 72.5mm OD x 0.15mm Thk

1шт.

15

84336055

SPACER,55mm ID x 70mm OD x 4mm L

1шт.

16

47565299

SUPPORT

1шт.

17

87590370

DOWEL

12 x 30mm

2шт.

18

47565186

SHAFT

Sun, RH, 274.5mm

1шт.

18

47565184

SHAFT

Sun, LH, 299.5mm

1шт.

19

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

4шт.

20

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

8шт.

21

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

8шт.

Выбрано товаров: 22
