(25.108.AA[03]) - VAR - 743560 - FRONT AXLE, SHAFT, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO

Запчасти Case IH FARMALL 120C (25.108.AA[03]) - VAR - 743560 - FRONT AXLE, SHAFT, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO (25) - FRONT AXLE SYSTEM

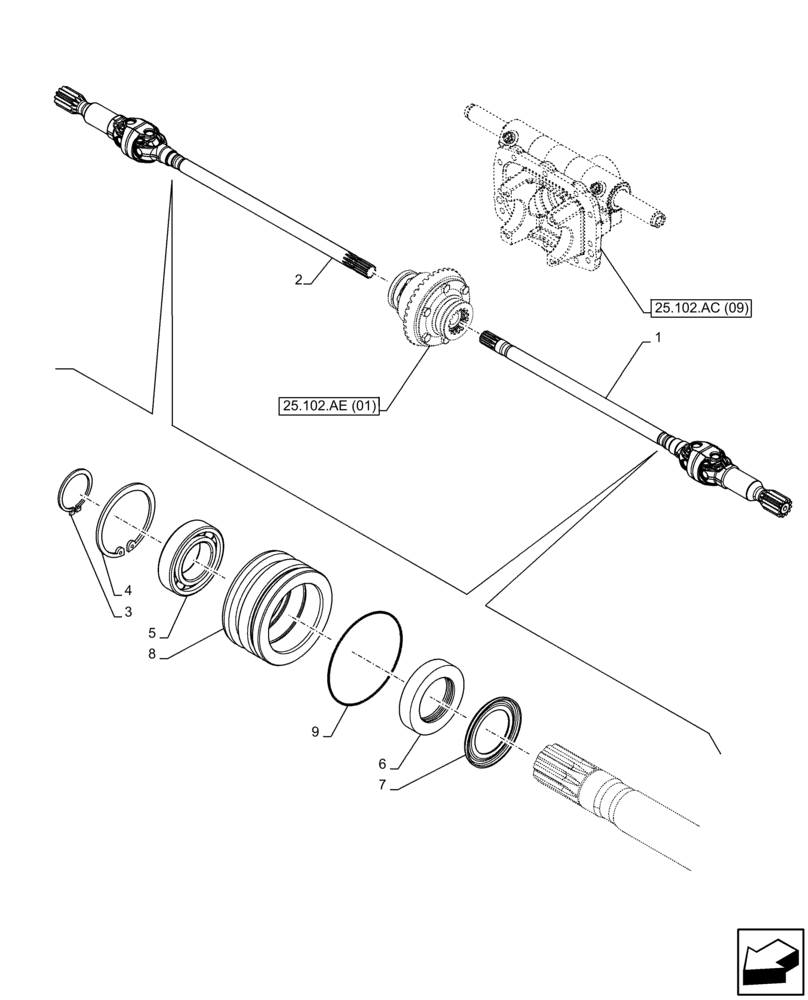

Схема запчастей Case IH FARMALL 120C - (25.108.AA[03]) - VAR - 743560 - FRONT AXLE, SHAFT, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO (25) - FRONT AXLE SYSTEM
5
9
6
25.102.ae (01)
7
2
25.102.ac (09)
1
8
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84356634

HALF SHAFT

LH

1шт.

2

84356629

HALF SHAFT

RH

1шт.

3

11067876

SNAP RING,M30, Ext

1шт.

4

11060676

CIRCLIP,M55, Int

1шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

6

47558301

SEAL,33mm ID x 52mm OD x 17mm Thk

1шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

1шт.

8

84351856

BUSHING,46mm ID x 75mm OD x 48mm L

1шт.

9

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.
