Запчасти Case IH FARMALL 120C (25.102.AC[11]) - VAR - 337323 - FRONT AXLE, DIFFERENTIAL, CARRIER, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM

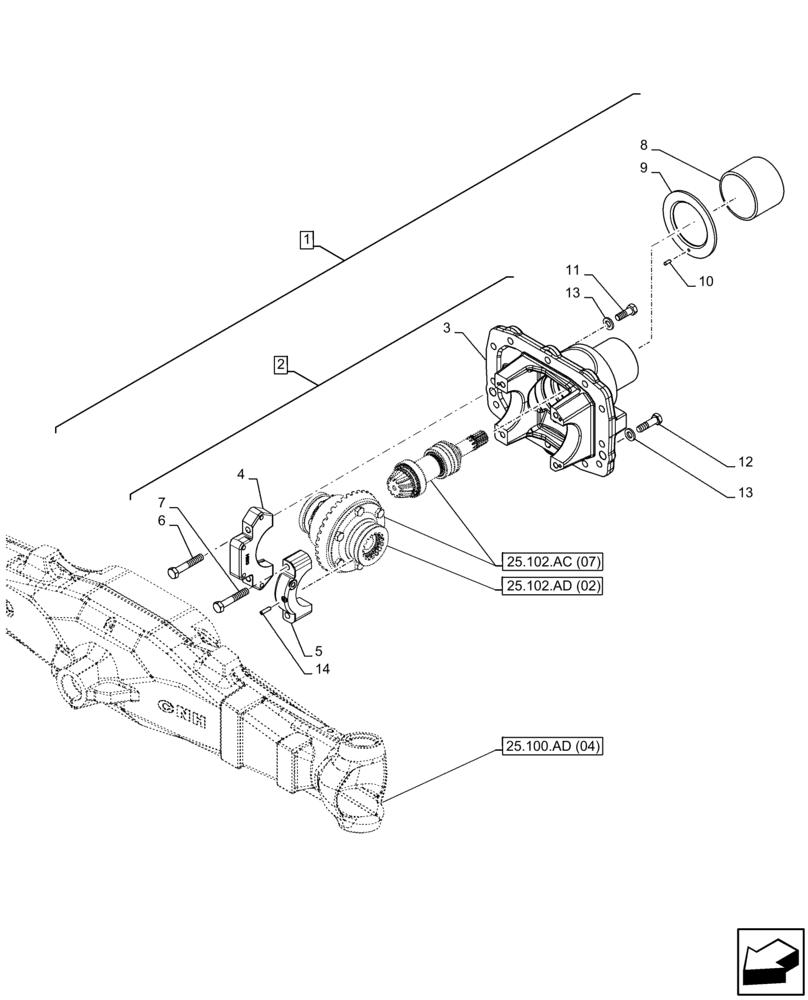

Схема запчастей Case IH FARMALL 120C - (25.102.AC[11]) - VAR - 337323 - FRONT AXLE, DIFFERENTIAL, CARRIER, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM
5
6
2
8
13
13
14
1
12
11
25.102.ac (07)
10
3
25.100.ad (04)
4
7
25.102.ad (02)
9

Артикул

Название

Примечание

Количество

1

84358645

COVER

ASSY, Incl 2 - 10

1шт.

2

84362203

SUPPORT

ASSY, Incl 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 2

1шт.

4

5167818

SUPPORT

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing Support, Incl in 2

1шт.

6

14275531

SCREW,M12 x 1.25 x 80mm, Cl 10.9

2шт.

7

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

8

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

9

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

10

4966244

PIN,5mm OD x 15mm L

1шт.

11

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

4шт.

12

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

8шт.

13

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

12шт.

14

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

Выбрано товаров: 14
