(25.100.AD[04]) - VAR - 337323 - FRONT AXLE, HOUSING, W/ MECHANICAL ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO

Запчасти Case IH FARMALL 120C (25.100.AD[04]) - VAR - 337323 - FRONT AXLE, HOUSING, W/ MECHANICAL ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM

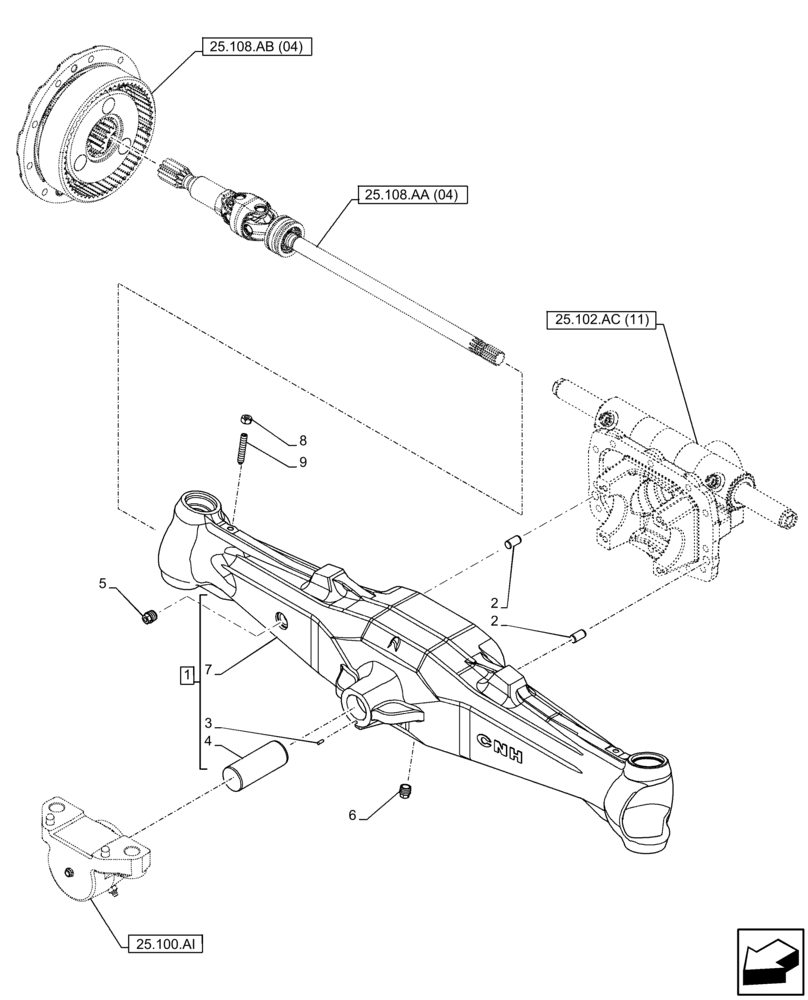

Схема запчастей Case IH FARMALL 120C - (25.100.AD[04]) - VAR - 337323 - FRONT AXLE, HOUSING, W/ MECHANICAL ENGAGEMENT, 4WD, HEAVY DUTY, HI-LO (25) - FRONT AXLE SYSTEM
25.100.ai
8
4
3
7
9
1
25.108.aa (04)
25.108.ab (04)
25.102.ac (11)
6
5
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349764

FRONT AXLE

ASSY, Incl 2 - 4, 7

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

47123533

PIN,52mm OD x 131mm L

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

9

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

Выбрано товаров: 9
