Запчасти Case IH FARMALL 120C (21.168.AC[06]) - VAR - 743552 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC, HI-LO (21) - TRANSMISSION

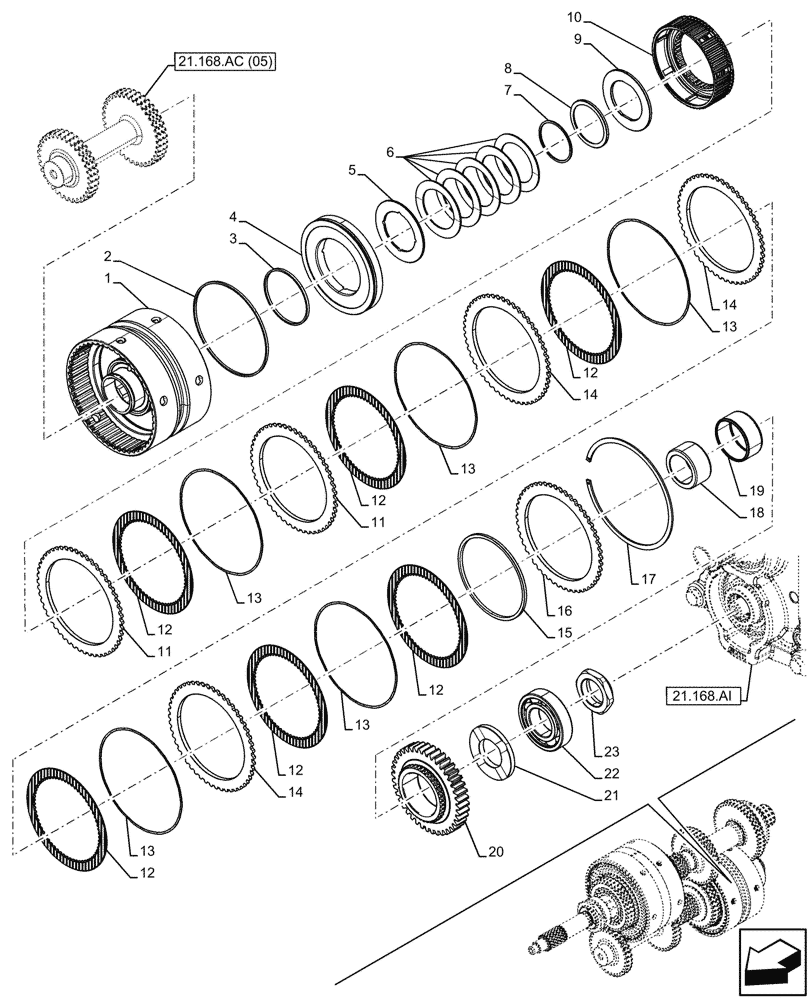

Схема запчастей Case IH FARMALL 120C - (21.168.AC[06]) - VAR - 743552 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC, HI-LO (21) - TRANSMISSION
21.168.ac (05)
13
8
21
13
3
23
14
6
14
18
20
22
19
11
4
1
14
15
12
12
12
13
10
9
12
17
2
13
13
11
7
16
12
5
12
21.168.ai

Артикул

Название

Примечание

Количество

1

47379397

CLUTCH HOUSING

1шт.

2

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

1шт.

3

47136601

GASKET,70.55 - 70.70mm ID x 78mm OD x 3.20mm Thk

1шт.

4

47379391

PISTON,78mm ID x 132mm OD x 15.8mm L

1шт.

5

84337008

SPACER,55.4mm ID x 86.5mm OD x 2.5mm Thk

1шт.

6

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

5шт.

7

5191305

CIRCLIP,54mm ID

1шт.

8

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

9

47379396

SPACER,55.4mm ID x 85mm OD x 3.5mm L

85mm OD x 55mm ID x 4mm

1шт.

10

84339677

HUB

2шт.

11

84409574

CLUTCH DISC,119.6mm ID x 152.6mm OD x 2mm Thk

119.6mm ID x 152.6mm OD x 2mm Thk

1шт.

12

5199726

NOTCHED DISK,114.78mm ID x 143.25mm OD x 1.65mm Thk

114.78mm ID x 143.25mm OD x 1.65mm Thk

5шт.

13

81864341

SPRING,148.35mm ID

5шт.

14

47136596

NOTCHED DISK,119.6mm ID x 152.6mm OD x 2.2mm Thk

3шт.

15

5190245

SEAL,119.2mm OD

1шт.

16

84339685

DISC,Z50, 120mm ID

1шт.

17

5162251

CIRCLIP,142.5mm ID

1шт.

18

84339678

RING,40mm ID x 55mm OD x 28mm L

1шт.

19

5194535

NEEDLE BEARING CAGE,55mm ID x 60mm OD x 27mm L

1шт.

20

84408197

GEAR

1шт.

21

84339682

SPACER,75mm ID x 53mm OD x 4mm Thk

1шт.

22

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

23

47666657

NUT,Hex, M40 x 1.5, Cl 8.8

1шт.

Выбрано товаров: 23
