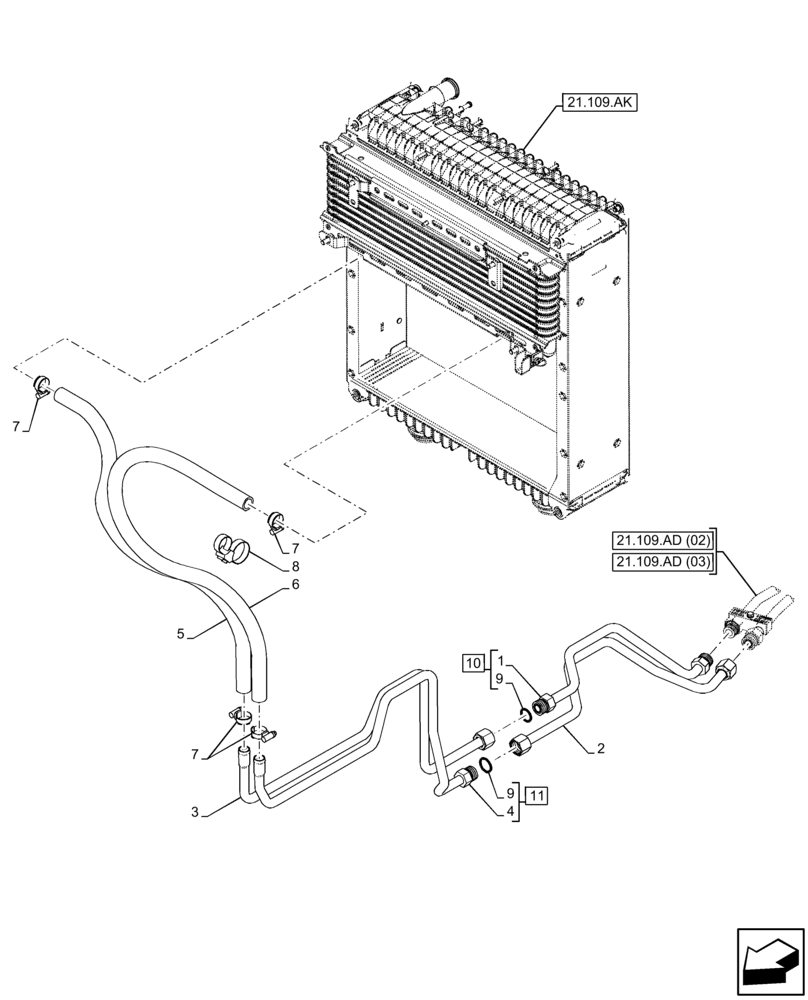

Запчасти Case IH FARMALL 120C (21.109.AD[01]) - VAR - 743524 - TRANSMISSION OIL, COOLER, LINE, PIPE (21) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

Pipe, Incl in 10

1шт.

2

84473939

PIPE

1шт.

3

47384236

TUBE

1шт.

4

NSS

NOT SOLD SEPARAT

Pipe, Incl in 11

1шт.

5

47406957

HOSE,19mm ID x 830mm L

1шт.

6

47415878

HOSE,19mm ID x 950mm L

1шт.

7

47471898

HOSE CLAMP,20mm - 32mm

4шт.

8

86991000

CLAMP

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

47370144

TUBE

ASSY , Incl 1, 9 (Qty 1)

1шт.

11

47384234

TUBE

ASSY , Incl 4, 9 (Qty 1)

1шт.
