Запчасти Case IH FARMALL 120C (90.120.BH[03]) - VAR - 390901 - DRIVER SEAT, FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

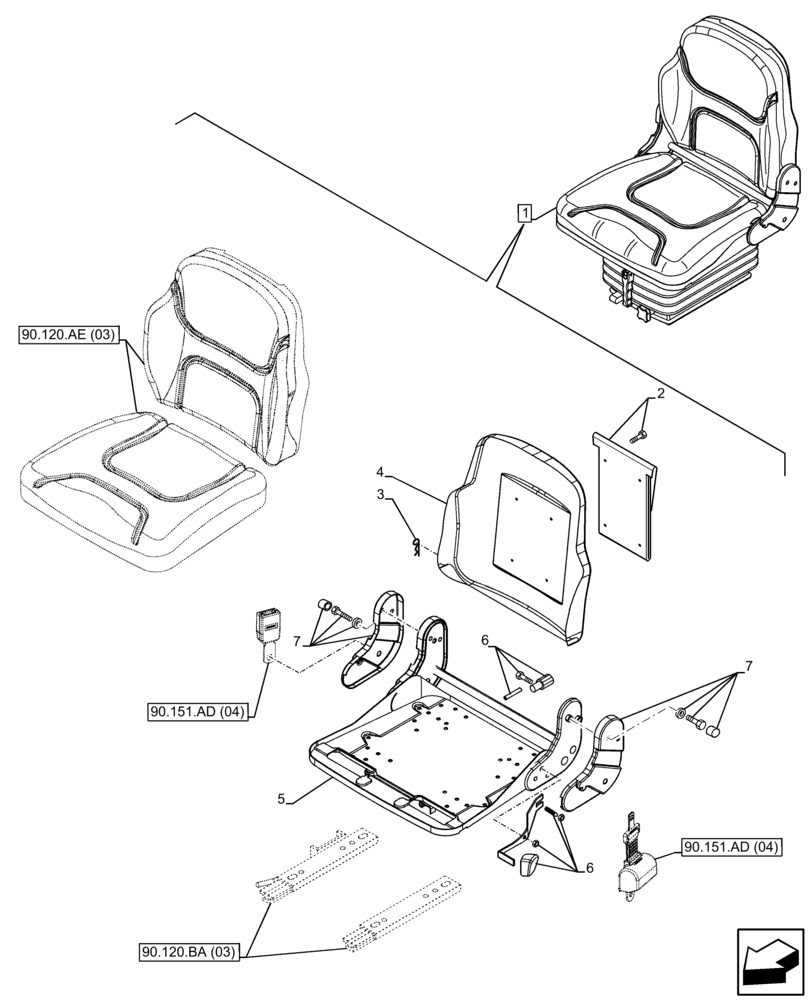

Схема запчастей Case IH FARMALL 120C - (90.120.BH[03]) - VAR - 390901 - DRIVER SEAT, FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
7
90.151.ad (04)
6
7
90.120.ae (03)
4
6
5
3
90.151.ad (04)
2
90.120.ba (03)

Артикул

Название

Примечание

Количество

1

84352963

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 7

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Cushion Support & Hardware

1шт.

6

47387993

KIT

Hardware

1шт.

7

47388032

KIT

Hardware and Cover Armrests

1шт.

Выбрано товаров: 9
