Запчасти Case IH FARMALL 120C (90.120.BB[05]) - VAR - 390901 - DRIVER SEAT, SUSPENSION, BELLOWS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

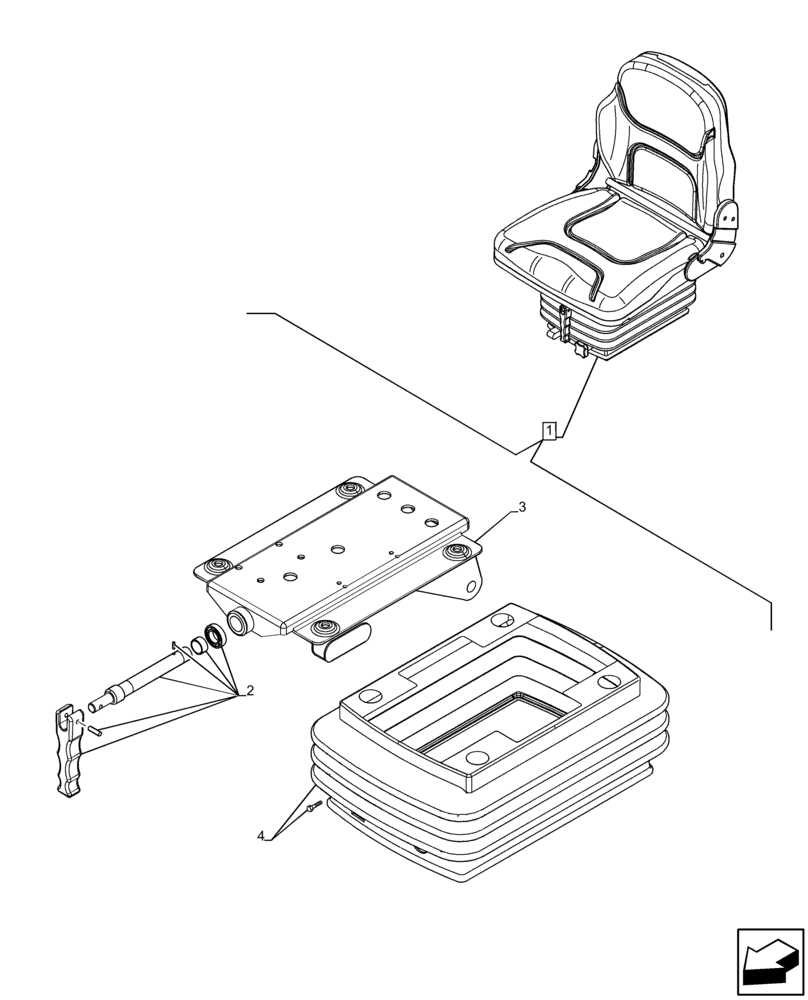

Схема запчастей Case IH FARMALL 120C - (90.120.BB[05]) - VAR - 390901 - DRIVER SEAT, SUSPENSION, BELLOWS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
3
2

Артикул

Название

Примечание

Количество

1

84352963

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 4

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

47388078

KIT

Weight Adjustment

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

4

47388492

KIT

Bellows

1шт.

Выбрано товаров: 6
