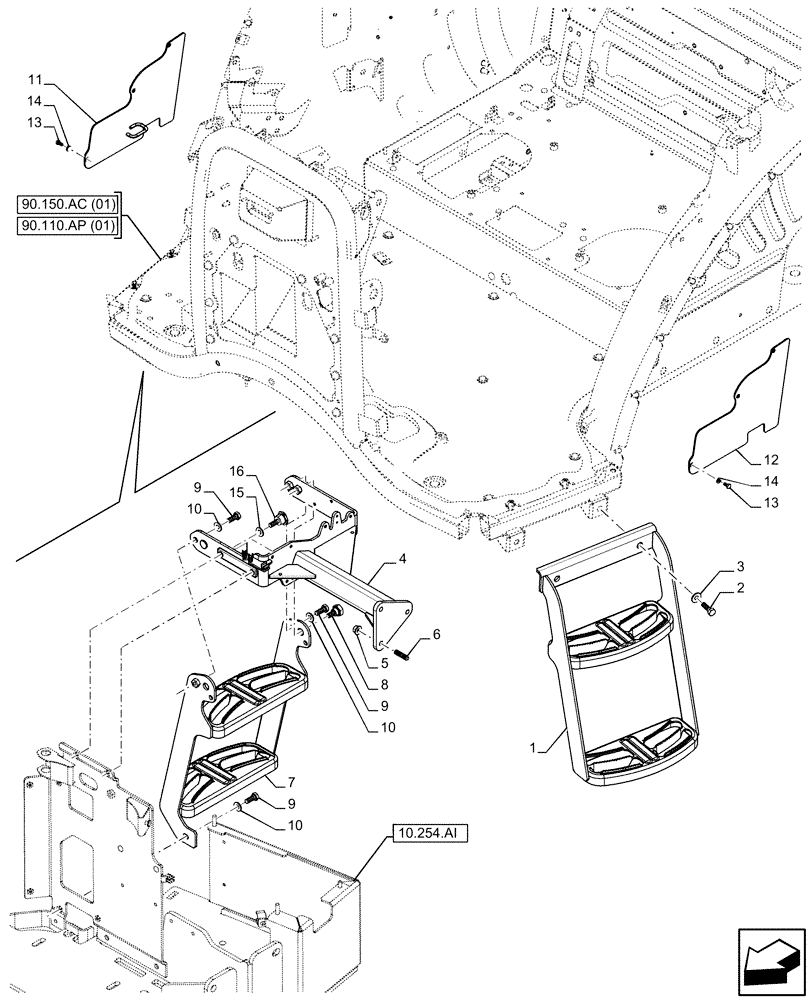

Запчасти Case IH FARMALL 120C (90.118.CE) - LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47600012

LADDER

1шт.

2

87026053

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

3

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

4

47622051

BRACKET

1шт.

5

14059421

FLANGE NUT,Hex, M10 x 1.25, Cl. 10

M10 x 1.25

3шт.

6

13449521

STUD

M10 x 1.25 x 15

3шт.

7

47600006

LADDER

Black

1шт.

8

84492886

STEP BOLT,M10 x 27mm

M10

1шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

10

12642501

WASHER,10.2mm ID x 22mm OD x 2mm Thk

3шт.

11

47571574

SHEET

Black

1шт.

12

84477830

STEEL PLATE

Black

1шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

14

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6шт.

15

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

16

47773561

SPRING CLIP

M10 x 25

3шт.
