Запчасти Case IH FARMALL 120C (90.116.BA[06]) - VAR - 744674 - DYNAMIC FRONT FENDER, SUPPORT (410MM), LARGE, HIGH TYRES (24’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

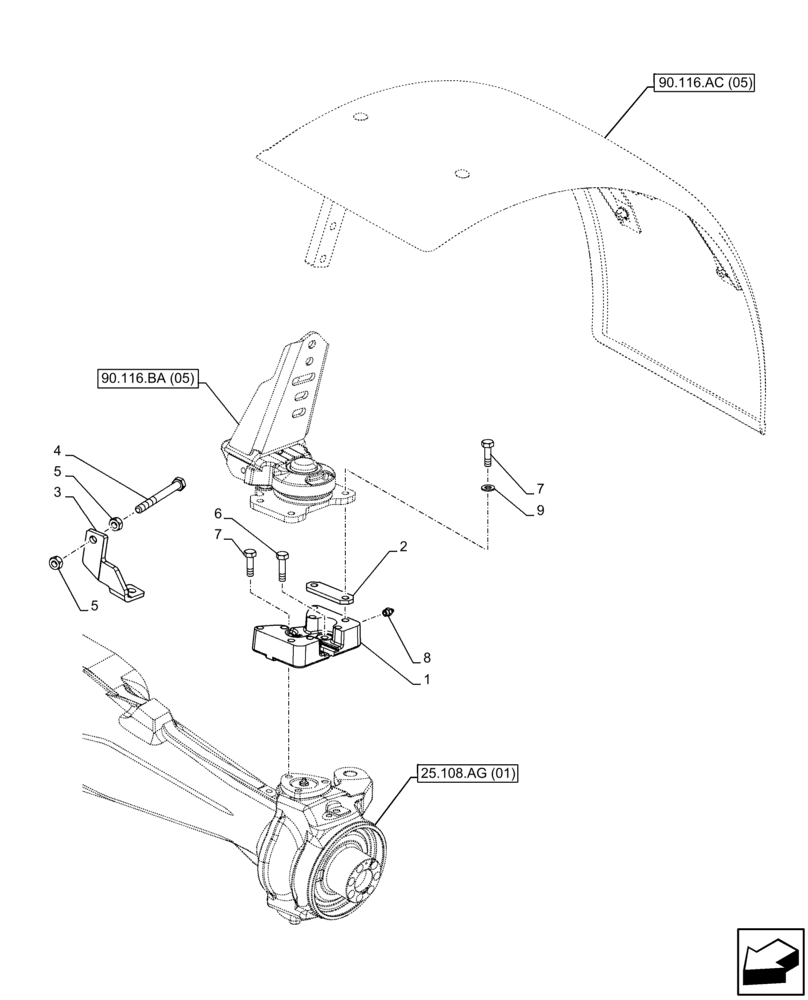

Схема запчастей Case IH FARMALL 120C - (90.116.BA[06]) - VAR - 744674 - DYNAMIC FRONT FENDER, SUPPORT (410MM), LARGE, HIGH TYRES (24’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
3
5
9
6
8
25.108.ag (01)
7
90.116.ba (05)
2
1
90.116.ac (05)
5
4

Артикул

Название

Примечание

Количество

1

47132603

BRACKET

LH

1шт.

1

47132605

BRACKET

RH

1шт.

2

87484584

SPACER

2шт.

3

87644463

BRACKET

LH

1шт.

3

87644421

BRACKET

RH

1шт.

4

15235221

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12 x 1.25 x 120 FULL 8.8 ZND

1шт.

5

16101521

NUT,M12 x 1.25, Cl 10

2шт.

6

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

7

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

5шт.

8

13407211

LUBE NIPPLE,M10 x 1

1шт.

9

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

Выбрано товаров: 11
