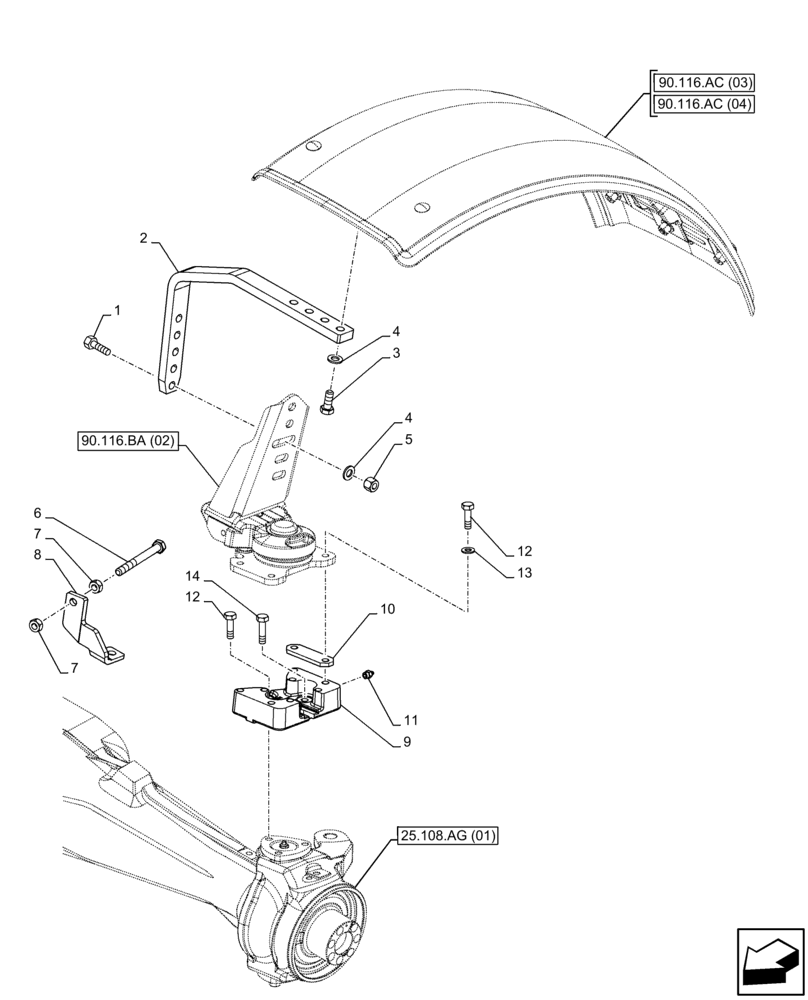

Запчасти Case IH FARMALL 120C (90.116.BA[04]) - VAR - 744674 - DYNAMIC FRONT FENDER, SUPPORT (400MM), LARGE (20’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

2

87390029

SUPPORT

1шт.

3

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

2шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

5

16105014

LOCK NUT,M12 x 1.25

2шт.

6

15235221

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12 x 1.25 x 120mm, Full 8.8 ZND

1шт.

7

16101521

NUT,M12 x 1.25, Cl 10

2шт.

8

87644463

BRACKET

LH

1шт.

8

87644421

BRACKET

RH

1шт.

9

47132605

BRACKET

RH

1шт.

9

47132603

BRACKET

LH

1шт.

10

87484584

SPACER

2шт.

11

13407211

LUBE NIPPLE,M10 x 1

1шт.

12

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

5шт.

13

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

14

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.
